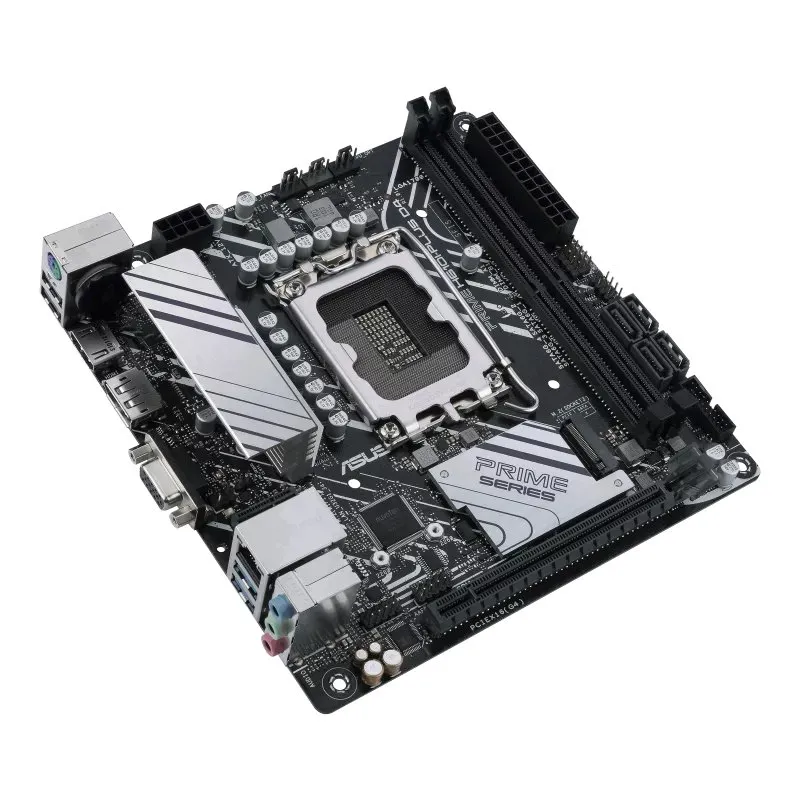

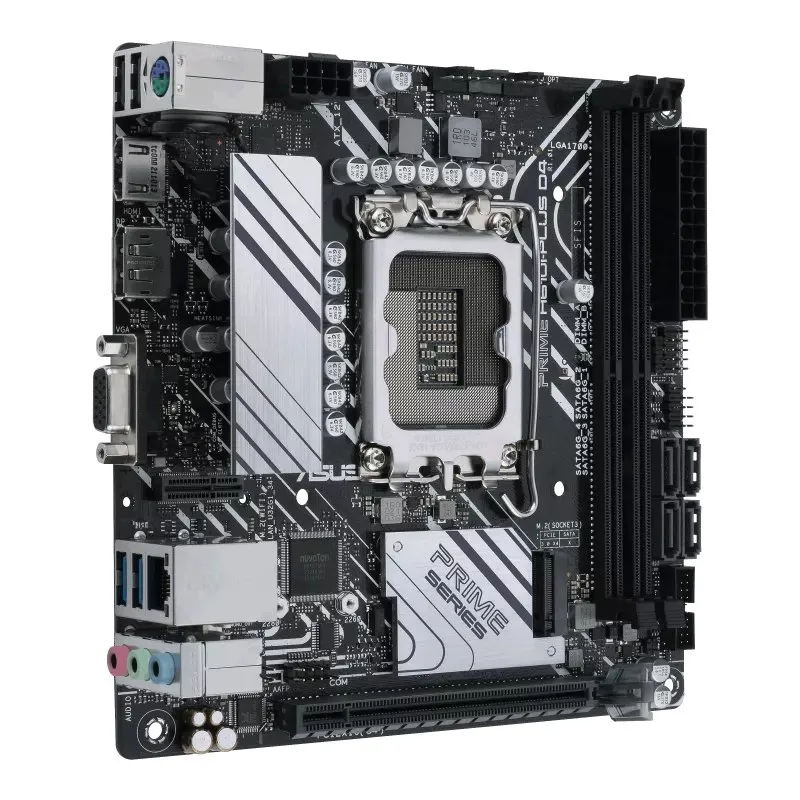

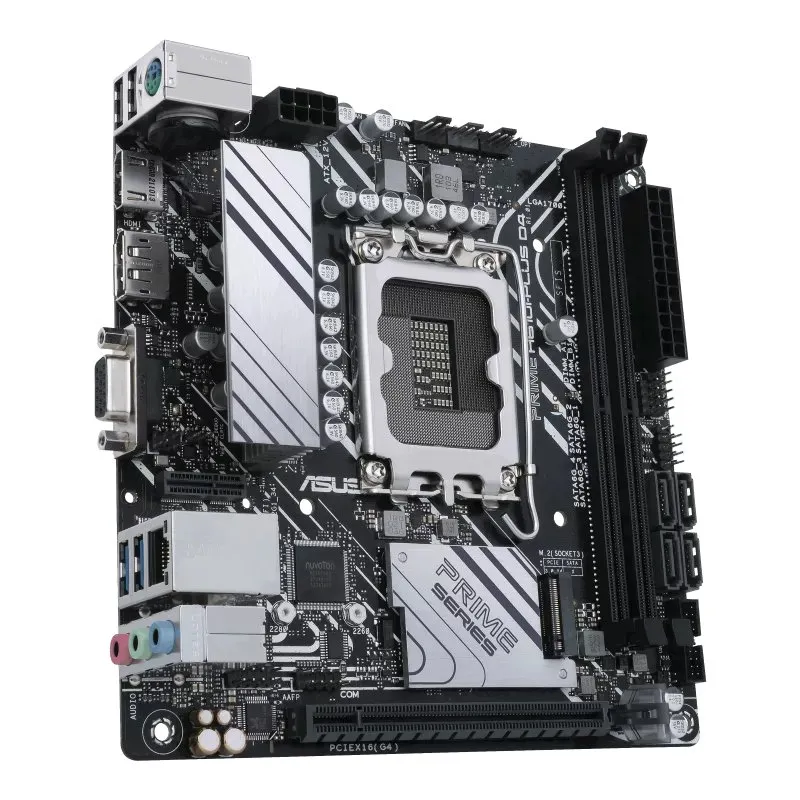

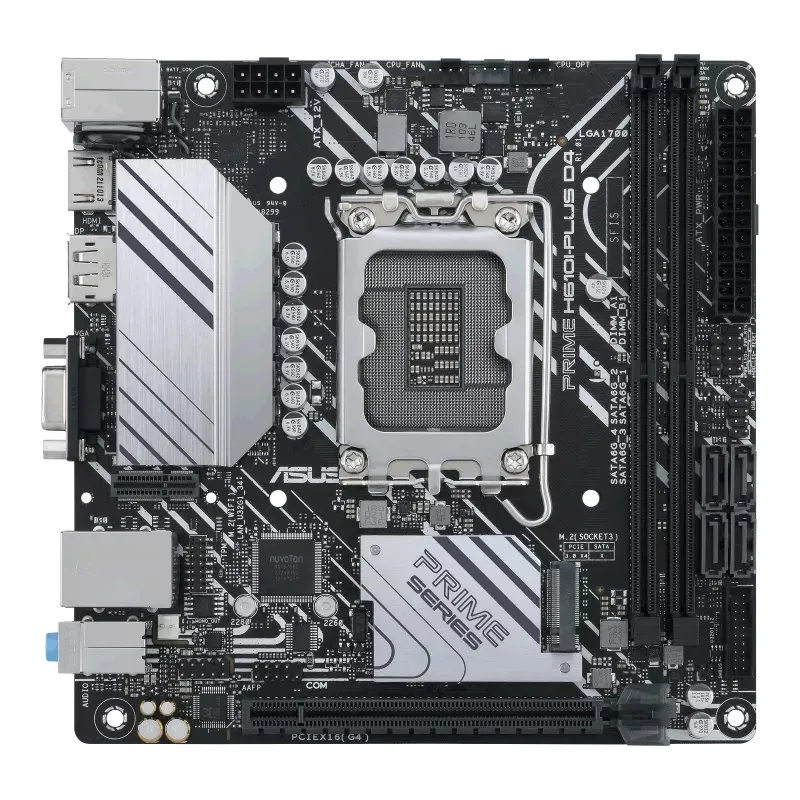

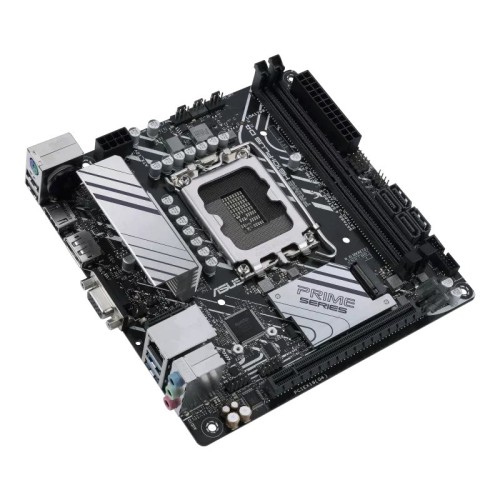

ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard

Name: ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
Brand: Asus
Price: 17000.00 BDT
Availability: InStock

Save: 3,500৳

ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard

0 reviews - Write a review

Price: 17,000৳

Regular Price: 20,500৳

Stock : In Stock

Brand: Asus

Model: PRIME H610I-PLUS D4

Key Features

Model: PRIME H610I-PLUS D4
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR4, Max 64GB 3200
Graphics Output: 1x HDMI port, 1x DisplayPort, 1 x D-Sub
Features: 1 x Realtek 1Gb Ethernet

17,000৳

Cash Discount Price

Online / Cash Payment

3,942৳/month

Regular Price: 20,500৳

EMI Starting from 3,942৳/month.
Click here to check EMI Policy

Qty

Add to Cart

Buy Now

Add to Wish List Add to Compare

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

Custom Tabs

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Description

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H610 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers
Expansion Slots
PCI	Intel 14th & 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot
M.2 Socket	1 x M.2 slots
Memory
Type	DDR4
Slots	2x DIMM
Supported Memory	3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	Max. 64GB
Graphics
Graphics	Support DisplayPort 1.4 with max. resolution of 4K@60Hz. Support HDMI® 2.1 with max. resolution of 4K@60Hz.
Connector & Ports
HDMI	1 x HDMI port
D-Sub (s)	1 x D-Sub

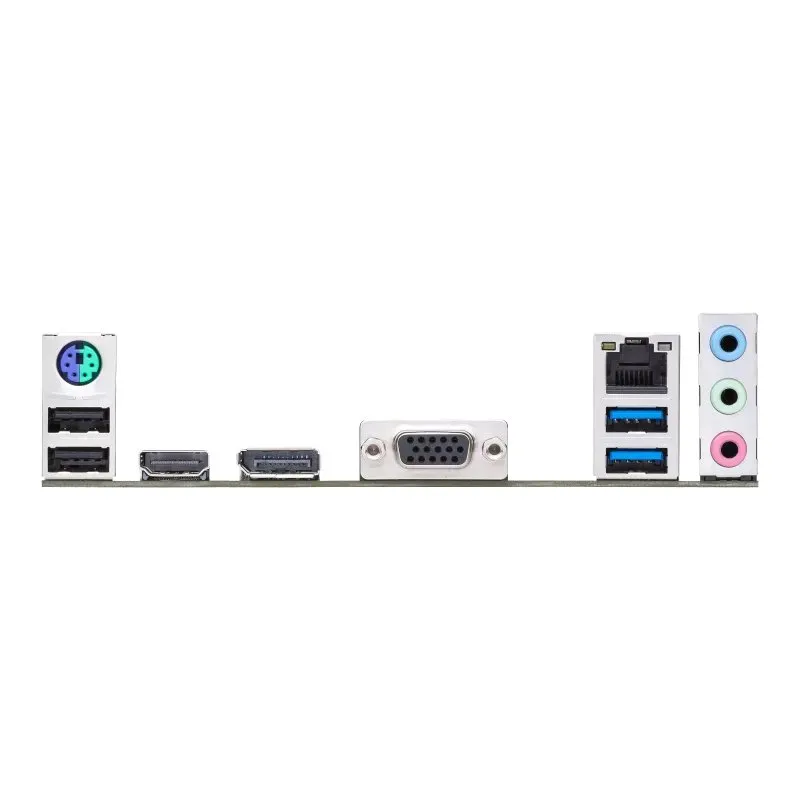

USB (s)	Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port (s)	1 x Realtek 1Gb Ethernet port
Wireless Communication module	M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately.
Supported Storage	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports
Audio	3x Audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Warranty Information
Manufacturing Warranty	3 years warranty

ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard

The ASUS PRIME H610I-PLUS D4 Mini ITX motherboard is engineered to deliver high performance and robust connectivity for compact PC builds. It is based on the Intel H610 chipset and supports the Intel LGA 1700 socket, making it compatible with 14th, 13th, and 12th Gen Intel Core processors. This motherboard boasts an enhanced power delivery system with 5+1+1 DrMOS power stages, ensuring stable and reliable performance. Cooling is efficiently managed through the inclusion of VRM and PCH heatsinks, as well as Fan Xpert technology. In terms of connectivity, it offers a 32Gbps M.2 slot, Realtek 1 Gb Ethernet, and multiple USB 3.2 Gen 1 ports, ensuring fast data transfer and reliable internet connectivity. The motherboard supports a variety of display outputs, including DisplayPort, HDMI, and D-Sub, providing versatile options for different setups. Additional features include COM and mono-out headers with an Amp IC for expanded peripheral connectivity and SATA 6 Gbps ports for quick data access. The ASUS PRIME H610I-PLUS D4 incorporates 5X Protection III, offering multiple hardware safeguards. This combination of performance, cooling, connectivity, and protection makes it an excellent choice for building a powerful yet compact system.

Reviews

What is the price of ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard in Bangladesh?

The latest price of ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard in Bangladesh is 17,000৳ You can buy the ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard at best price from our website or visit any of our showrooms.
