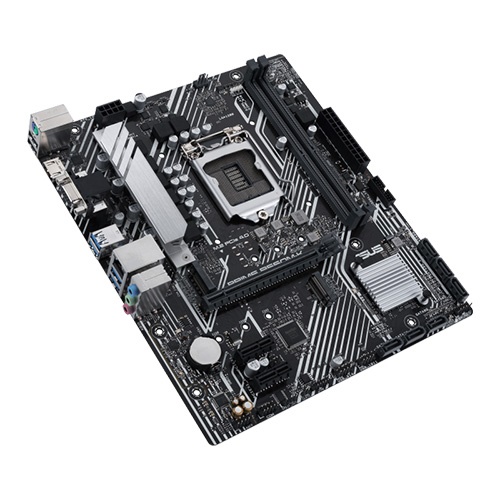

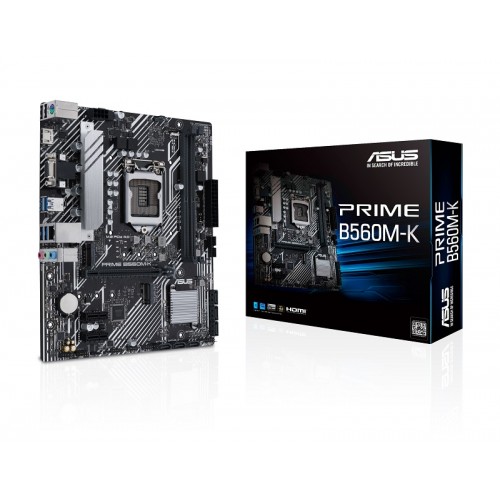

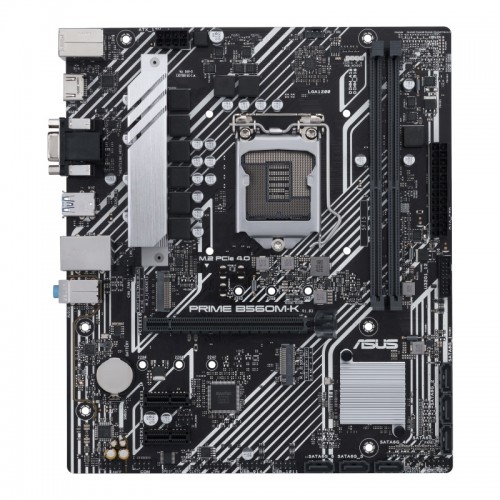

ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard

ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard
Out Of Stock
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard
ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard
0 reviews - Write a review
  • Price:
  • Regular Price: 0৳
  • Stock : Out Of Stock
  • Brand: Asus
  • Model: PRIME B560M-K

    • Key Features

    • Model: PRIME B560M-K
    • Intel LGA 1200 socket: Supports 10th &11th Gen Intel Core processors
    • 8 power stages, alloy chokes & durable capacitors
    • PCIe 4.0, Intel 1 Gb Ethernet, USB3.2 Gen 1
    • VRM heatsink, PCH heatsink
    Out Of Stock
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard

    Specification

    Basic Information
    Supported CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
    Chipset Intel B560 Chipset
    BIOS 128 Mb Flash ROM, UEFI AMI BIOS
    Form Factor microATX 9.6 inch x 8.3 inch(24.4cm x 21.1cm)
    Audio Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC: - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers
    Expansion Slots
    PCI Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel11th Gen processors support PCIe 4.0 x16 mode - Intel10th Gen processors support PCIe 3.0 x16 mode Intel B560 Chipset 2 x PCIe 3.0 x1 slots
    M.2 Socket M.2_1 slot (Key M), type 2242/ 2260/ 2280 M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes)
    Memory
    Type Memory Channels:2DDR4 (Dual Channel)
    Slots Dual Channel Memory Architecture
    Supported Memory 5000(OC)/ 4800(OC)/ 4600(OC)/4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/3600(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) -10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. -11th Gen Intel processors support 2933/2800/2666/2400/2133 natively.
    Maximum Memory 64GB
    Graphics
    Graphics 1 x D-Sub 1 x HDMI 2.0
    Connector & Ports
    HDMI 1 x HDMI port
    D-Sub (s) 1 x D-Sub port
    USB (s) Rear USB:Total 6 ports: 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports: 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Supported Storage M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
    Audio 3 x Audio jacks
    Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin+12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMI port 1 x Intel I219-V 1Gb Ethernet 1 x PS/2 Keyboard/Mouse combo port
    TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
    Others
    Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS Lighting Control -RGB header
    Warranty Information
    Manufacturing Warranty 03 Years Warranty

    Description

    ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard

    The new ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. For Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B560M-K provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard featured with Intel LGA 1200 socket: Ready for 11th Gen Intel Core processors, Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery, Comprehensive cooling: VRM heatsink, PCH heatsink, Ultrafast connectivity: PCIe 4.0, Intel 1 Gb Ethernet, rear USB 3.2 Gen 1 support. The ASUS Prime B560 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. This motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. In this motherboard the VRM heatsink with underneath thermal pad improve heat transfer from the MOSFETs for better cooling performance. Here, Stable power is essential to extract every last bit of performance out of 11th Generation Intel Core processors. Prime B560M-K is geared to cater to the demands of these high-core count CPUs. A VRM with 6+1+1 Power Stages delivers the power and efficiency that the latest Intel processors demand. This Prime B560 series motherboard is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. ASUS B560 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. This series motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. This motherboard is Brighten Up Your Build, with 5050 RGB strips connected to the RGB header, you can create your own stunning multicolor lighting displays with static, blinking, fading, and strobing effects. This latest ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard comes with 03 Years Warranty.

    Write a review

    Please login or register to review
    Tags:

    What is the price of ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard in Bangladesh?

    The latest price of ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard in Bangladesh is 0৳ You can buy the ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard at best price from our website or visit any of our showrooms.
