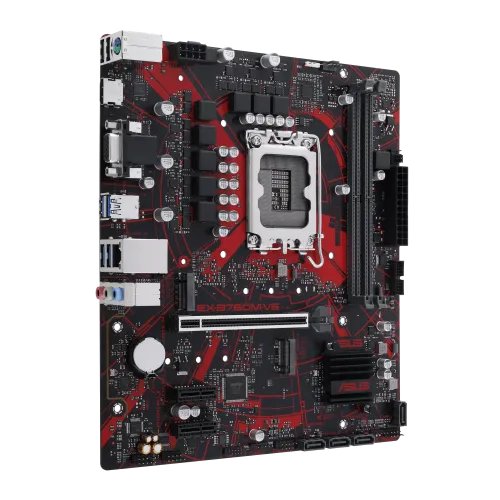

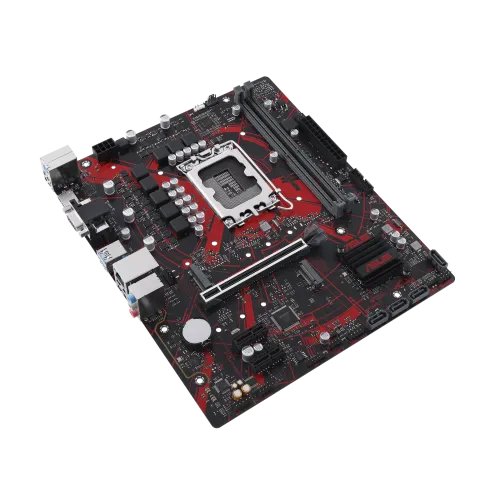

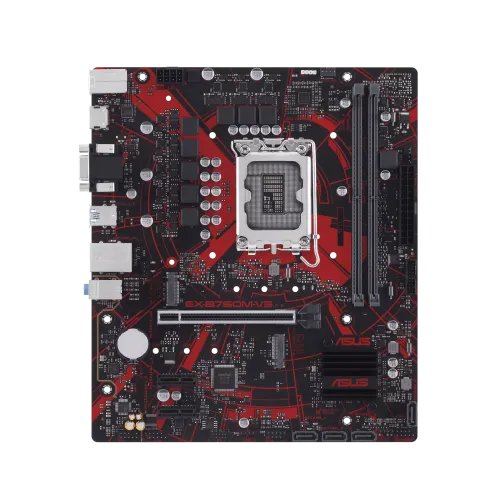

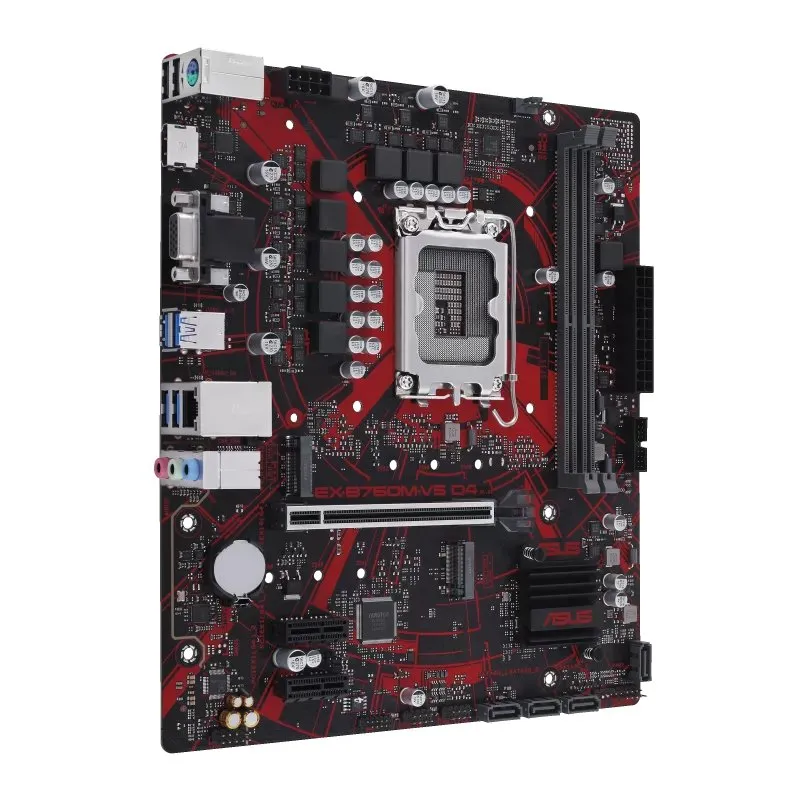

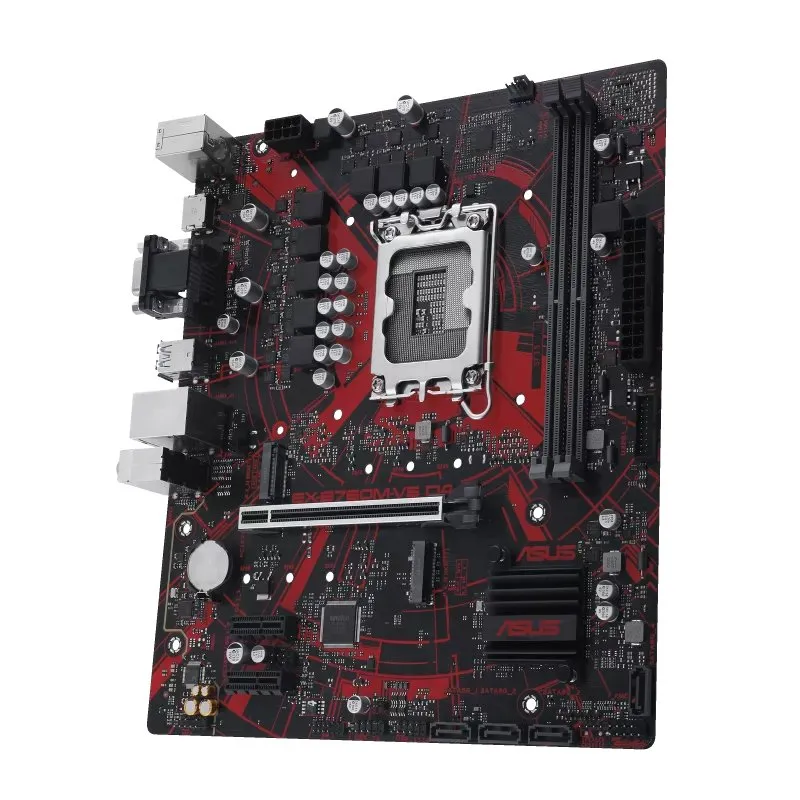

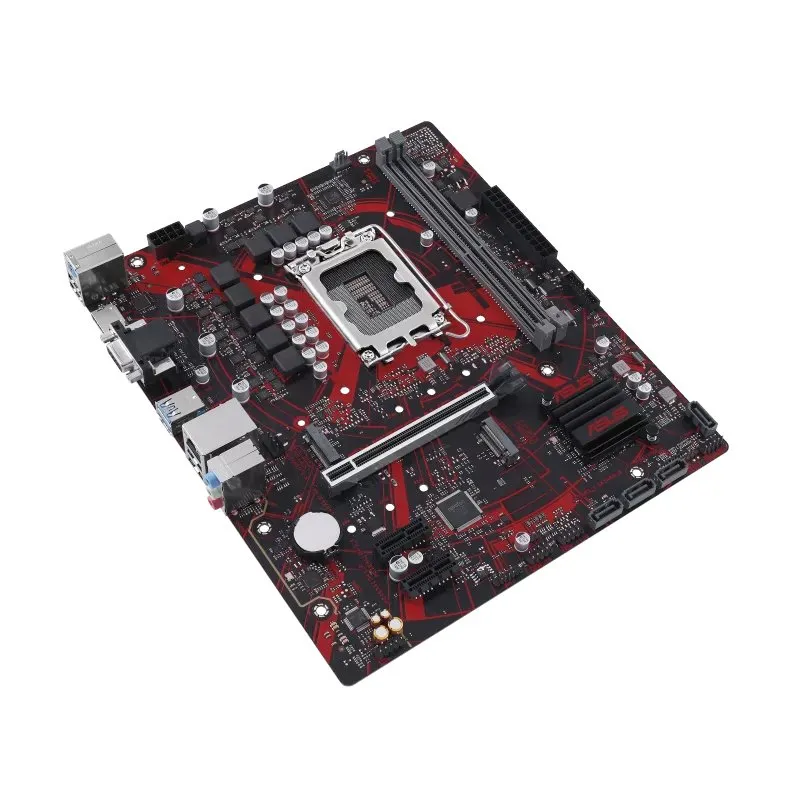

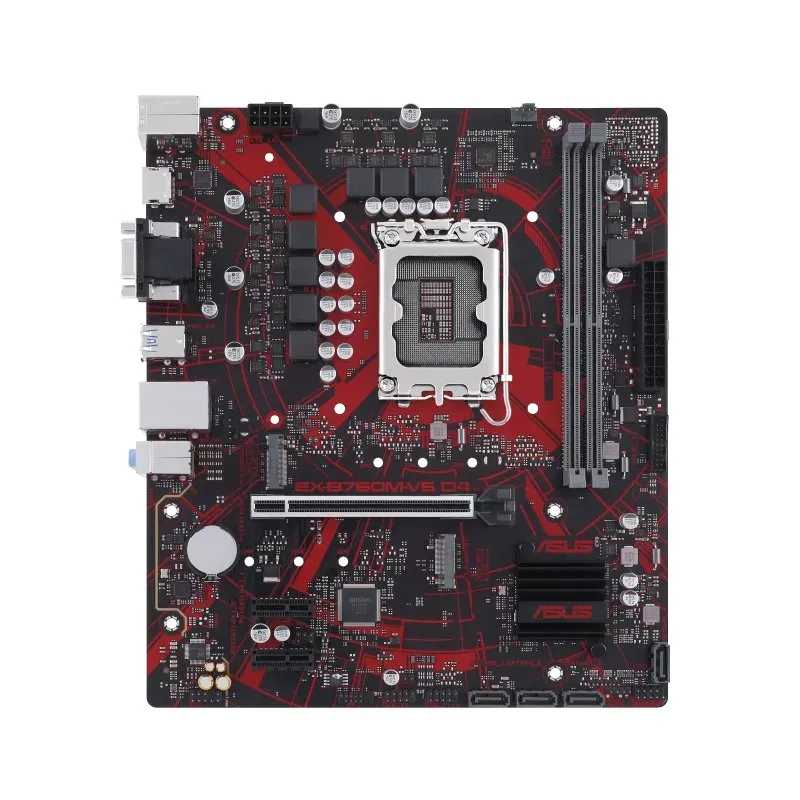

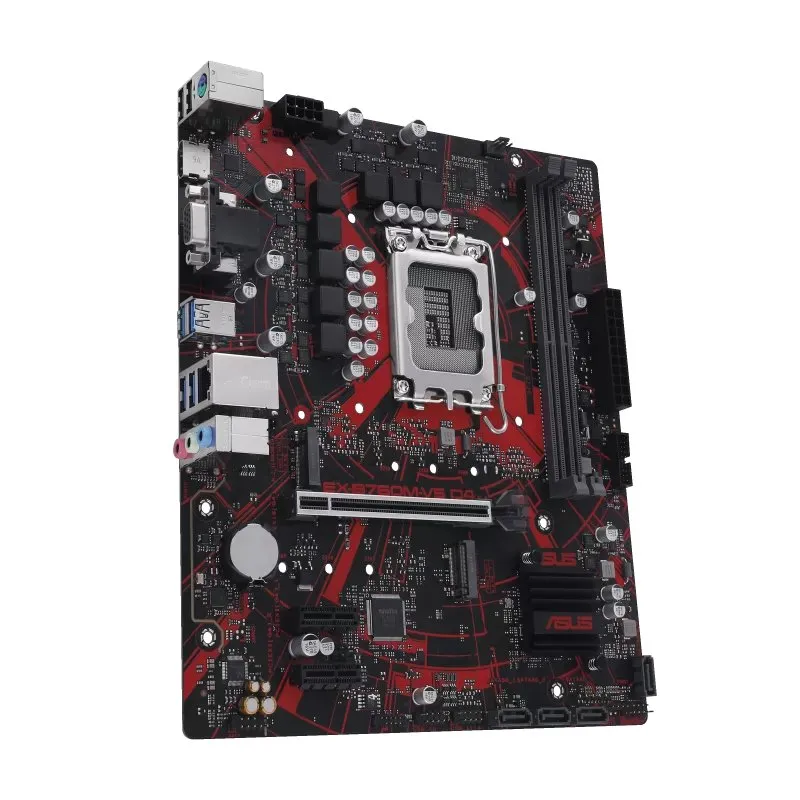

ASUS EX-B760M-V5 D4 mATX Motherboard

Name: ASUS EX-B760M-V5 D4 mATX Motherboard
Brand: Asus
Price: 16300.00 BDT
Availability: InStock

Save: 1,090৳

ASUS EX-B760M-V5 D4 mATX Motherboard

0 reviews - Write a review

Price: 16,300৳

Regular Price: 17,390৳

Stock : In Stock

Brand: Asus

Model: EX-B760M-V5 D4

Key Features

Model: EX-B760M-V5 D4
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR4, Max 64GB 5333(O.C.)
Graphics Output: 1x HDMI port, 1x DisplayPort
Features: 1x VGA port, 1 x HDMI port

16,300৳

Cash Discount Price

Online / Cash Payment

3,344৳/month

Regular Price: 17,390৳

EMI Starting from 3,344৳/month.
Click here to check EMI Policy

Qty

Add to Cart

Buy Now

Add to Wish List Add to Compare

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

Custom Tabs

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Description

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.6 inch x 8.3 inch(24.4cm x 21.1cm)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Premium audio capacitors - Audio Shielding - Dedicated audio PCB layers
Expansion Slots
PCI	Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots
M.2 Socket	2 x M.2 slots
Memory
Type	DDR4
Slots	2x DIMM
Supported Memory	5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory	Max. 64GB
Graphics
Graphics	Supports 4K@60Hz as specified in HDMI 2.1.

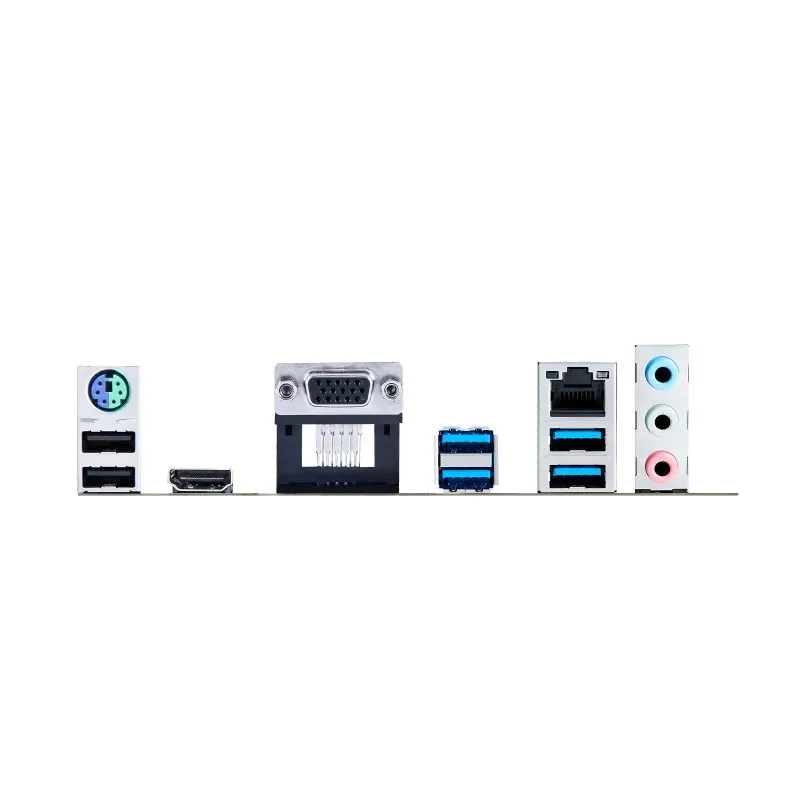

Connector & Ports
HDMI	1 x HDMI port
VGA (s)	1 x VGA port
USB (s)	Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet port
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio	3x Audio jacks
Internal I/O Ports	Internal I/O Connectors Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header
Others

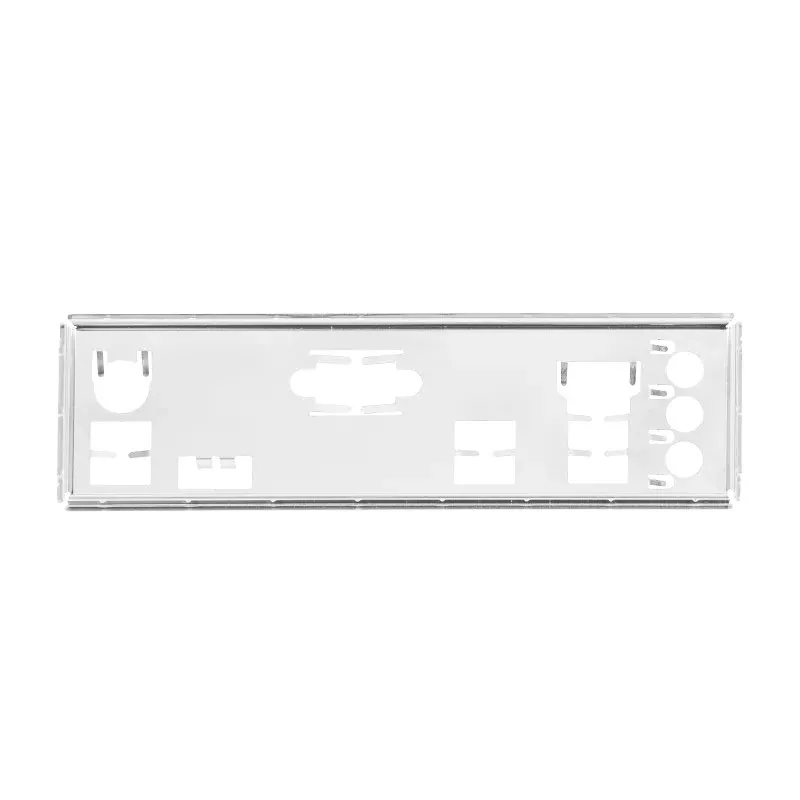

Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS EZ DIY - ProCool Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Luminous anti-moisture coating - USBGuard
Warranty Information
Manufacturing Warranty	3 years warranty

ASUS EX-B760M-V5 D4 mATX Motherboard

The ASUS EX-B760M-V5 D4 is an Intel B760 LGA 1700 mATX motherboard designed to deliver robust performance and durability for iCafes, gaming systems, and quality-driven businesses. Featuring PCIe 4.0, 8 power stages, and Realtek 2.5 Gb Ethernet, this motherboard offers cutting-edge technology and reliability. It is the ideal choice for non-stop action, making it perfect for iCafe setups, configure-to-order gaming systems, and professional environments focused on quality. The ASUS EX-B760M-V5 D4, with its luminous anti-moisture coating, protects against moisture damage, extending the motherboard's lifespan. The motherboard also includes LANGuard for enhanced surge protection and signal delivery, SafeSlot Core+ for reinforced PCIe slot protection, USBGuard to prevent overcurrent and short-circuit damage to USB devices, and a stainless-steel back I/O that is corrosion-resistant for longer-lasting performance. Its 5X Protection III provides comprehensive protection features ensuring overall system stability and reliability. The ASUS EX-B760M-V5 D4 supports DDR4 5333 (OC) for high-speed memory performance and is equipped with two M.2 slots for fast storage solutions. Its PCIe 4.0 compatibility supports the latest graphics cards and peripherals, while the Realtek 2.5 Gb Ethernet ensures quick and reliable networking. The motherboard is ASUS Beyond VR ready, providing immersive virtual reality experiences, and offers epic audio for superior sound quality in games and multimedia applications. The ASUS EX-B760M-V5 D4 is ASUS iCafé LAB-certified, ensuring reliable performance in iCafe environments and compatibility tested with diskless-system use for efficient network booting. Extensive testing with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards, and more ensures broad compatibility and top-tier performance.

Reviews

What is the price of ASUS EX-B760M-V5 D4 mATX Motherboard in Bangladesh?

The latest price of ASUS EX-B760M-V5 D4 mATX Motherboard in Bangladesh is 16,300৳ You can buy the ASUS EX-B760M-V5 D4 mATX Motherboard at best price from our website or visit any of our showrooms.
