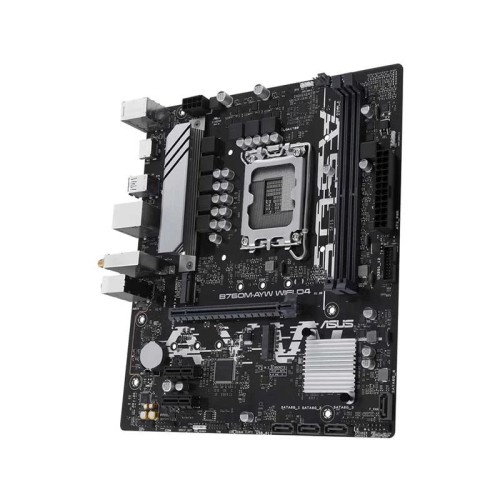

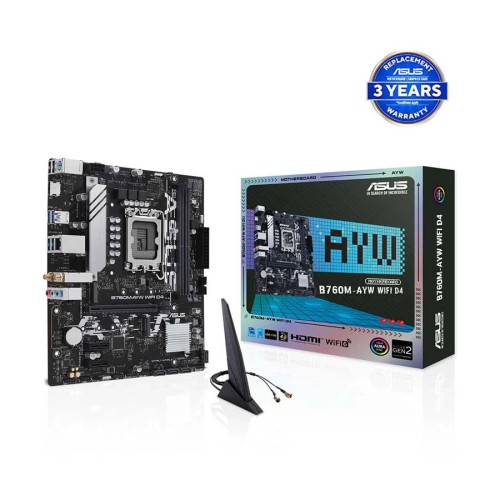

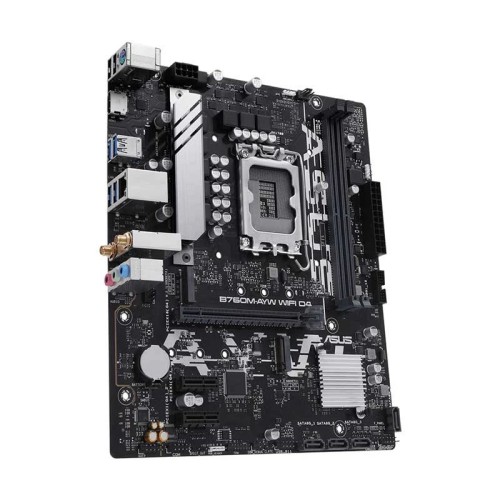

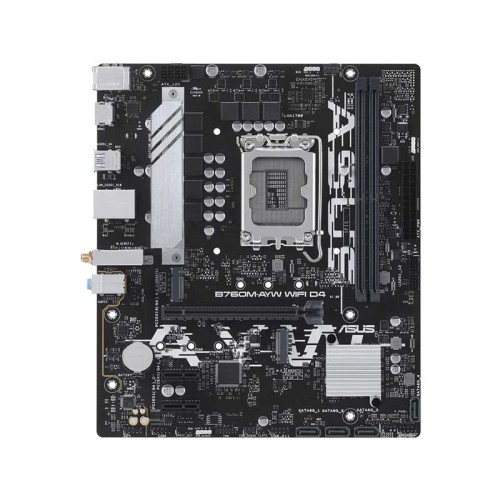

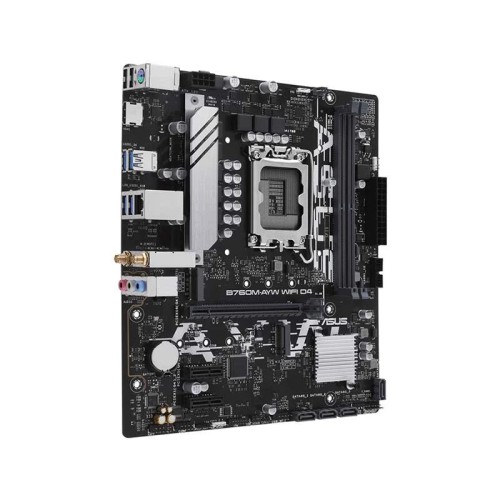

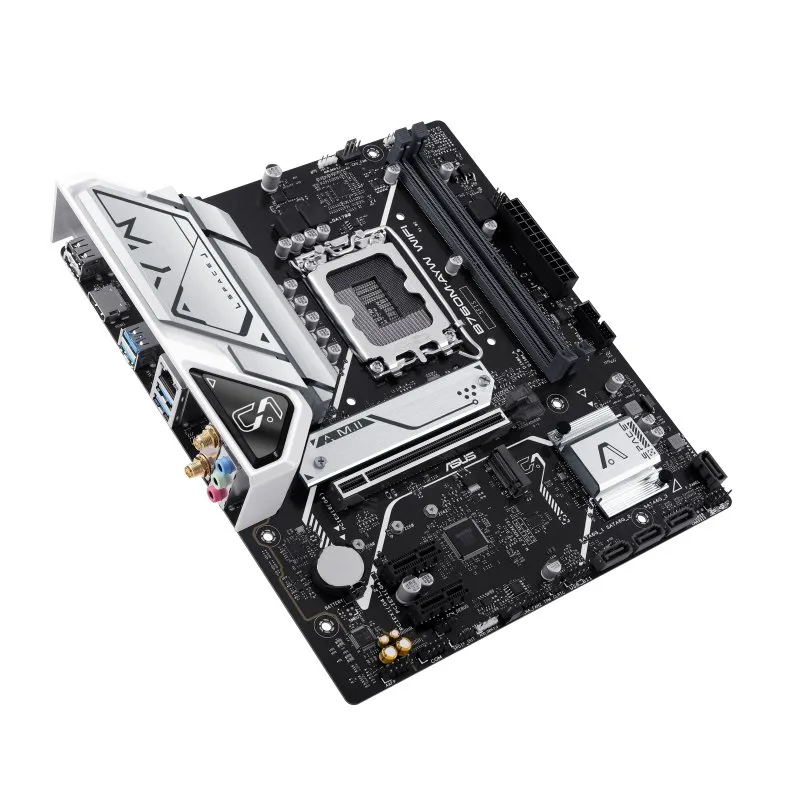

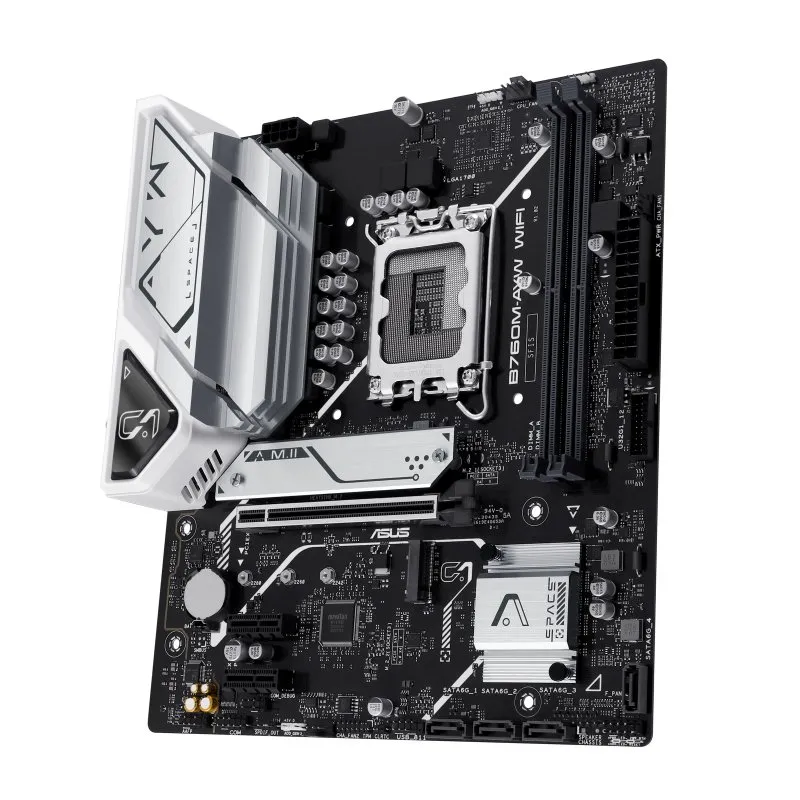

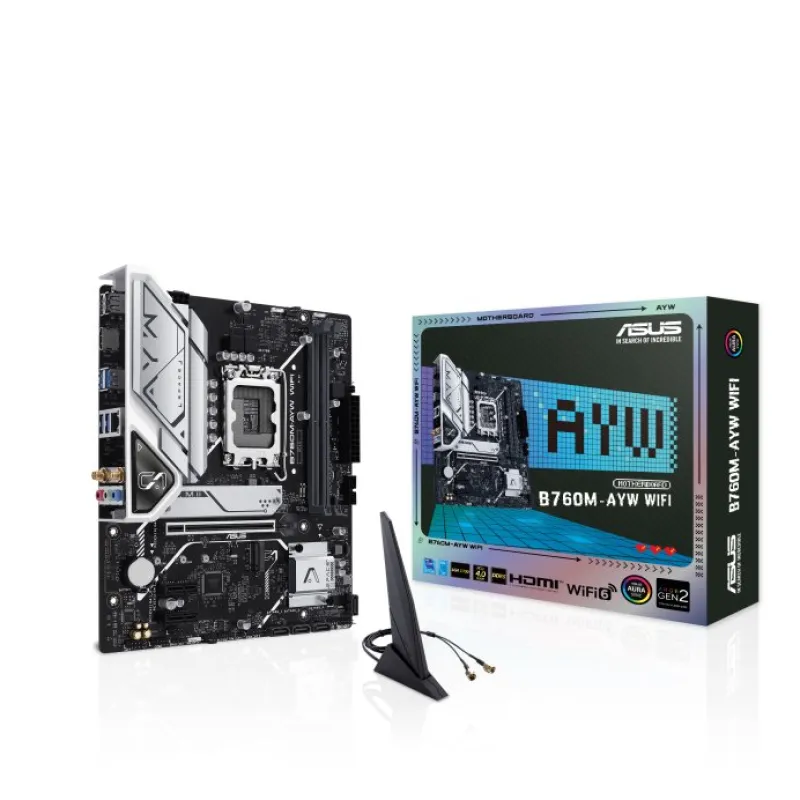

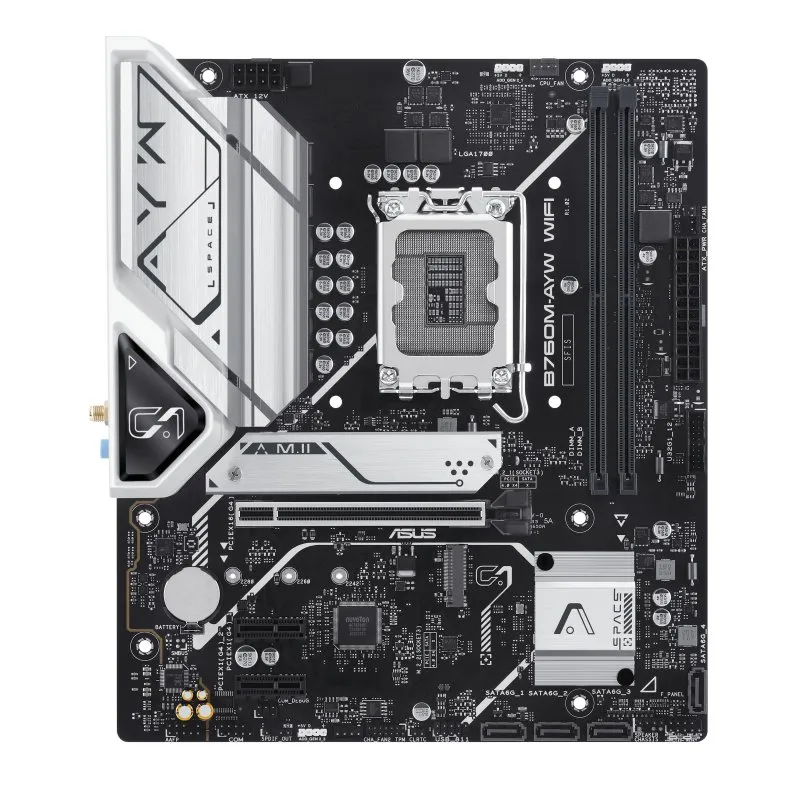

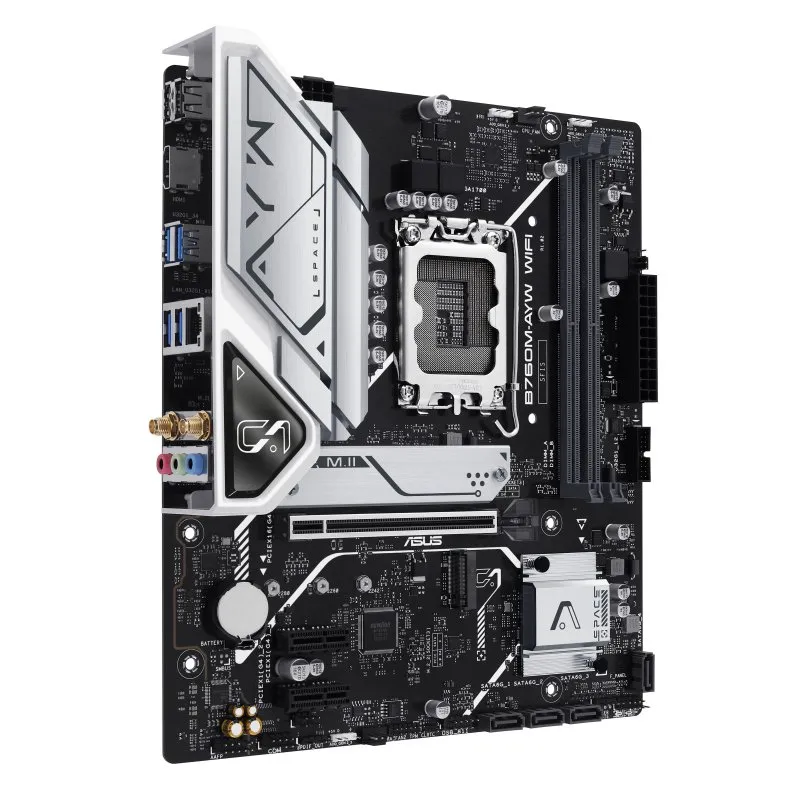

ASUS B760M-AYW WIFI mATX Motherboard

Name: ASUS B760M-AYW WIFI mATX Motherboard
Brand: Asus
Price: 25000.00 BDT
Availability: InStock

New Save: 5,000৳

ASUS B760M-AYW WIFI mATX Motherboard

0 reviews - Write a review

Price: 25,000৳

Regular Price: 30,000৳

Stock : In Stock

Brand: Asus

Model: B760M-AYW WIFI

Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM: 2 x DIMM, Max. 96GB, DDR5
Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports
Features: Realtek 2.5Gb Ethernet, Wi-Fi 6

25,000৳

Cash Discount Price

Online / Cash Payment

5,769৳/month

Regular Price: 30,000৳

EMI Starting from 5,769৳/month.
Click here to check EMI Policy

Qty

Add to Cart

Buy Now

Add to Wish List Add to Compare

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

Custom Tabs

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Description

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI	Intel Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots
Memory
Type	DDR5
Slots	2 x DIMM
Supported Memory	8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	Max. 96GB
Graphics
Graphics	Supports 4K@60Hz as specified in HDMITM 2.1.
Connector & Ports
HDMI	1 x HDMI

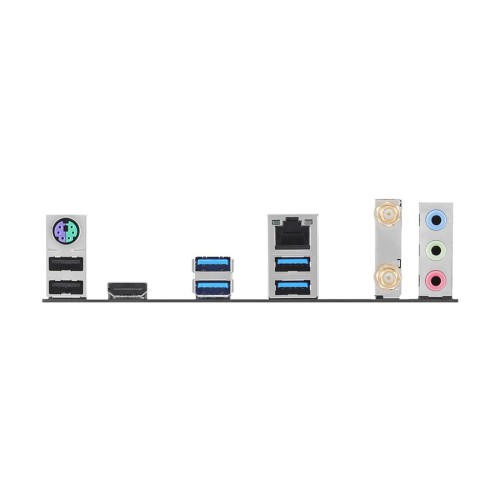

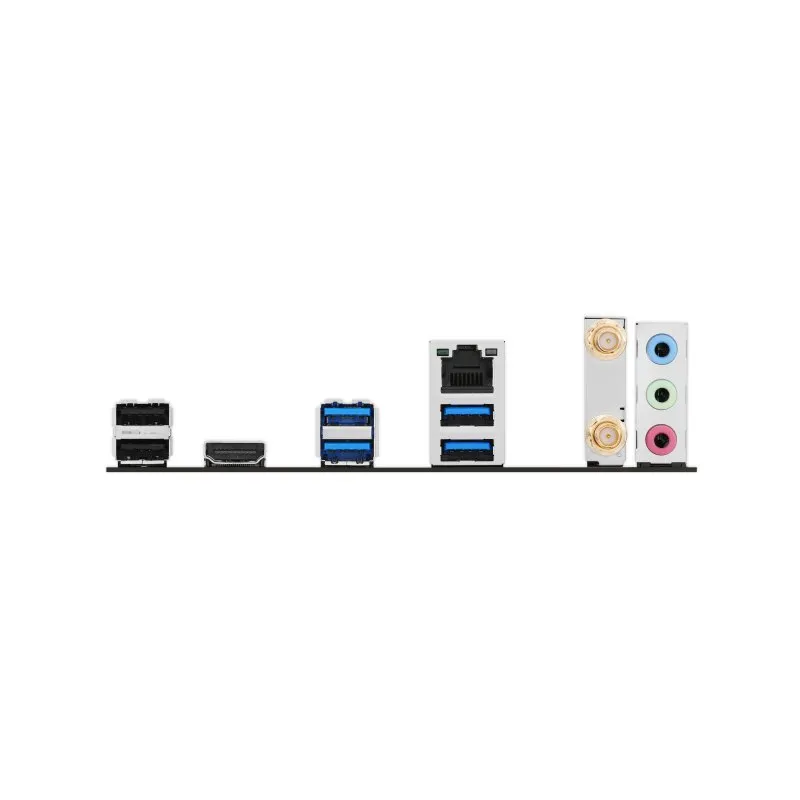

USB (s)	Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet ASUS LANGuard

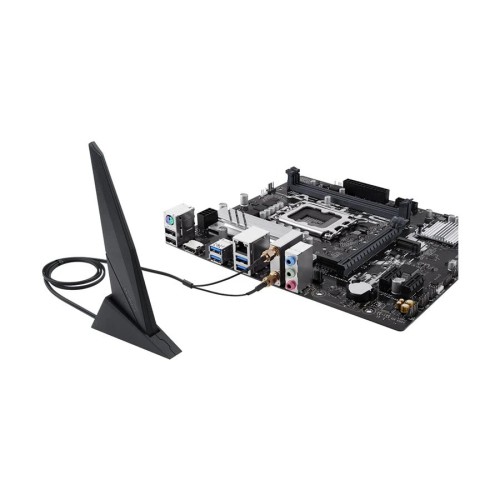

Wireless Communication module	Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.3
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio	3 x audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others

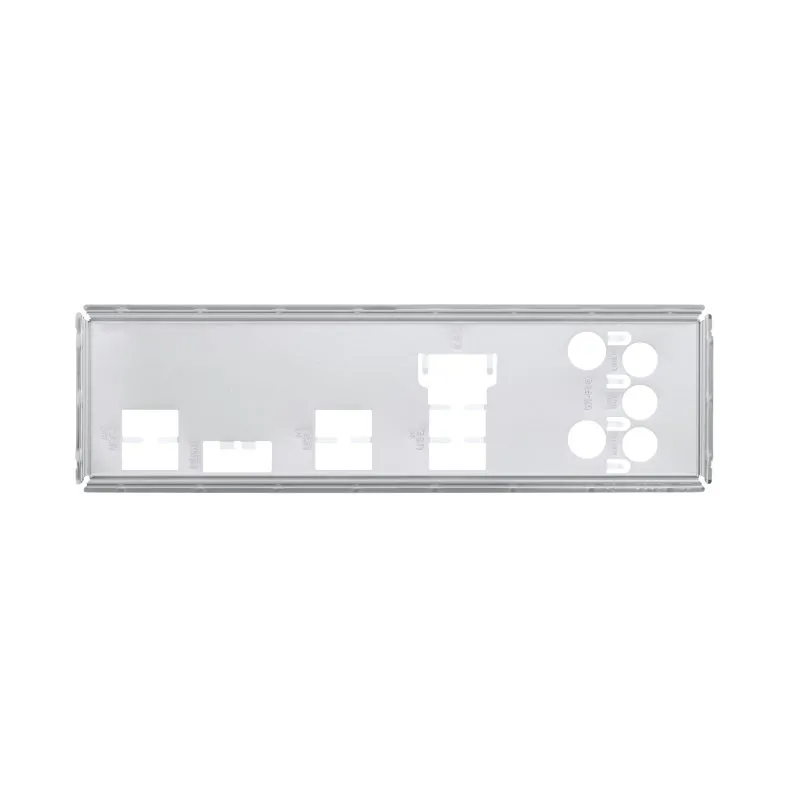

Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core + - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - M.2 heatsink - VRM heatsink design Aura Sync - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 years

ASUS B760M-AYW WIFI mATX Motherboard

The ASUS B760M-AYW WIFI mATX motherboard offers a powerful, compact solution ideal for gaming, content creation, and advanced AI applications. Built with the Intel B760 chipset and LGA 1700 socket, it’s compatible with Intel’s 12th, 13th, and future 14th-gen processors. This flexibility gives builders an edge in choosing or upgrading to the latest processors, ensuring longevity and performance in every build. For those exploring artificial intelligence computing, the ASUS B760M-AYW WIFI motherboard is engineered with robust connectivity and power management features, making it a future-ready choice for demanding AI tasks and other intensive applications. With high-speed connectivity options, including PCIe 4.0 slots and two PCIe 4.0 M.2 slots, users can achieve ultrafast storage and data transfer speeds. The board’s Realtek 2.5Gb Ethernet and WiFi 6 provide stable, high-speed internet connectivity, essential for gaming, streaming, and more. The inclusion of front USB 3.2 Gen 1 ports further improves data transfer convenience, allowing users to easily connect devices for faster performance. To ensure system stability and long-term reliability, the ASUS B760M-AYW WIFI motherboard is designed with a comprehensive cooling solution. This includes a VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers, and the Fan Xpert 2+ feature, all working together to keep temperatures in check during heavy usage. This robust cooling setup protects the system, extending the life of components by preventing overheating. The motherboard also offers Aura Sync RGB lighting with onboard Addressable Gen 2 headers. These allow for easy customization of RGB LED strips, making it simple to synchronize lighting with other Aura Sync-compatible components. This adds a personalized touch to your build, enabling it to reflect your unique style. The ASUS B760M-AYW WIFI motherboard is an excellent choice for users looking for a future-ready, high-performance mATX build that combines AI capabilities, high-speed connectivity, effective cooling, and a visually customizable setup.

Reviews

What is the price of ASUS B760M-AYW WIFI mATX Motherboard in Bangladesh?

The latest price of ASUS B760M-AYW WIFI mATX Motherboard in Bangladesh is 25,000৳ You can buy the ASUS B760M-AYW WIFI mATX Motherboard at best price from our website or visit any of our showrooms.
