ASRock Z790 Pro RS WiFi 14th Gen, 13th Gen & 12th Gen ATX Motherboard

Name: ASRock Z790 Pro RS WiFi 14th Gen, 13th Gen & 12th Gen ATX Motherboard
Brand: Asrock
Availability: OutOfStock

Up Coming

ASRock Z790 Pro RS WiFi 14th Gen, 13th Gen & 12th Gen ATX Motherboard

0 reviews - Write a review

Price:

Regular Price: 0৳

Stock : Up Coming

Brand: Asrock

Model: ASRock Z790 Pro RS WiFi

Key Features

Model: ASRock Z790 Pro RS WiFi
Supported CPU: Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors
Supported RAM: 4 x DDR5 DIMMs, supports up to 7200+(OC)
Graphics Output: 1 HDMI, 1 DisplayPort, eDP
Features: Realtek 2.5G LAN

0৳

Cash Discount Price

Online / Cash Payment

0৳/month

Regular Price: 0৳

EMI Starting from 0৳/month.
Click here to check EMI Policy

Qty

Up Coming

Buy Now

Add to Wish List Add to Compare

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

Custom Tabs

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Description

Specification

Brand & Model
Brand	ASRock
Series	Intel
Model	Z790 Pro RS WiFi
Supported CPU
CPU Type	- Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT)
Chipsets
Chipset	Intel Z790
Memory
Number of Memory Slots	4 x DDR5 DIMM Slots
Maximum Memory	128GB
Graphics
Graphics	- Intel Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio
Expansion Slots
Expansion Slots	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire
Storage
Storage	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 8 x SATA3 6.0 Gb/s Connectors
Network
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
BIOS
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
Ports & Connectors

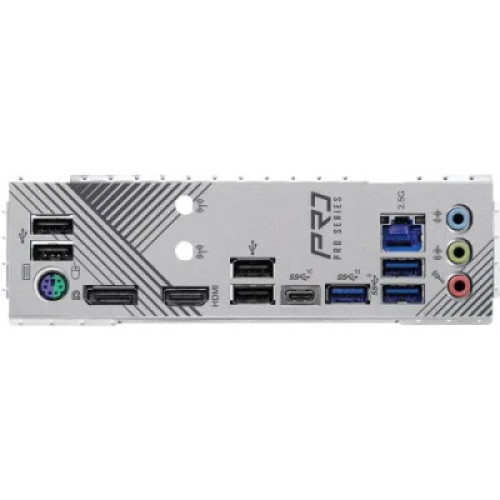

USB Ports	- 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
Internal I/O Ports	- 1 x eDP Signal Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Form Factor
Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB
Others
Unique Feature	Superb Productivity - PCIe Gen5 (Graphics) Rock-Solid Durability - 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Warranty
Warranty	3 years

ASRock Z790 Pro RS WiFi 14th Gen, 13th Gen & 12th Gen ATX Motherboard

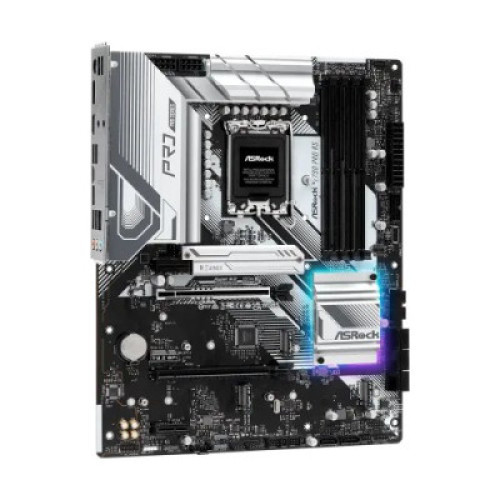

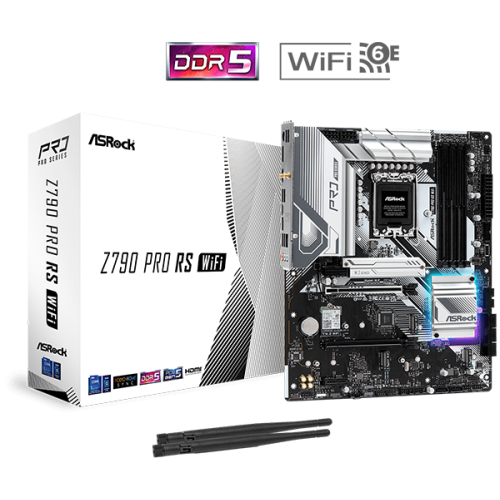

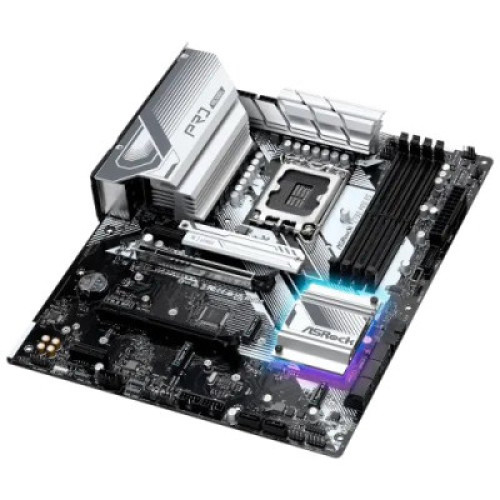

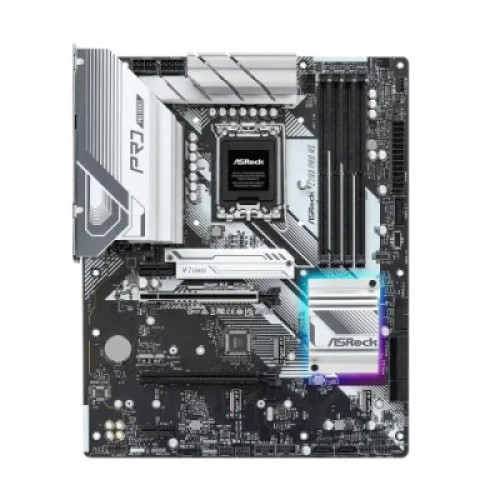

ASRock Z790 Pro RS WiFi motherboard supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700), 14+1+1 Phase Power Design, and Dr.MOS for VCore+GT. It comes with 4 x DDR5 DIMMs and supports up to 6800+ (OC). The ASRock Z790 Pro RS WiFi motherboard features 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1, and 1 M.2 Key-E for WiFi. It comes with 1 HDMI, 1 DisplayPort, and eDP graphics output options. The ASRock Z790 Pro RS WiFi offers 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio. This ASRock motherboard also has 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3. It comes with 1 USB 3.2 Gen2x2 Type-C (front), 1 USB 3.2 Gen2 Type-C (rear), 1 USB 3.2 Gen2 Type-A (rear), 6 USB 3.2 Gen1 (2 rear, 4 front), 8 USB 2.0 (4 rear, 4 front), and Realtek 2.5G LAN.

DDR5 XMP & EXPO Support

ASRock doesn't skimp on any elements since its design philosophy is "designed for stability and trustworthiness." By activating the pre-tested profiles, enthusiasts can take advantage of the increased DDR5 memory overclocking performance because the ASRock Z790 Pro RS WiFi motherboard is made of low-loss materials. Overclocking can be made inexpensive, pleasant, and completely painless if the RAM modules are Intel® XMP/AMD EXPOTM capable.

PCIe 5.0 + Surface-Mount Tech

The ASRock Z790 Pro RS WiFi SMT-type PCIe slot, as opposed to the traditional DIP style PCIe slot, enhances signal flow and maximizes stability at high speeds, a crucial advancement to fully support the lighting speed of the most recent PCIe 5.0 standard. The most recent PCI Express 5.0 is set to unleash the full power of future high-end graphic cards with its astonishing bandwidth of 128 GBps.

High Speed M.2 Solution

The ASRock Z790 Pro RS WiFi motherboard can handle several M.2 storage devices, one of which can support a PCI Express 4.0 M.2 SSD. This M.2 SSD can function at a speed that is twice as fast as the previous 3rd generation, providing an incredibly quick data transfer experience. The ASRock Z790 Pro RS WiFi 14th Gen, 13th Gen & 12th Gen ATX Motherboards have a 3-year warranty.
