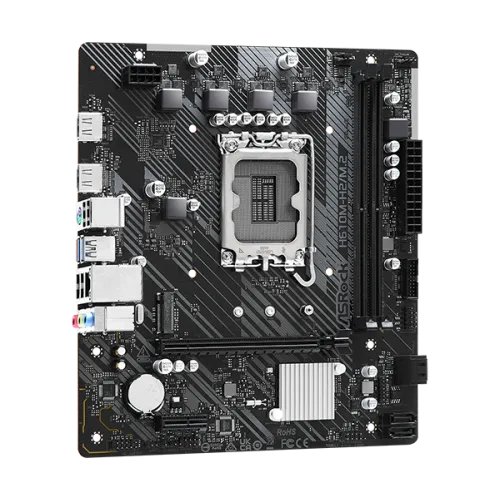

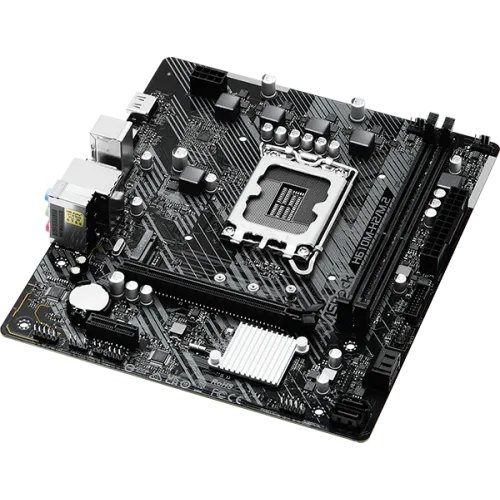

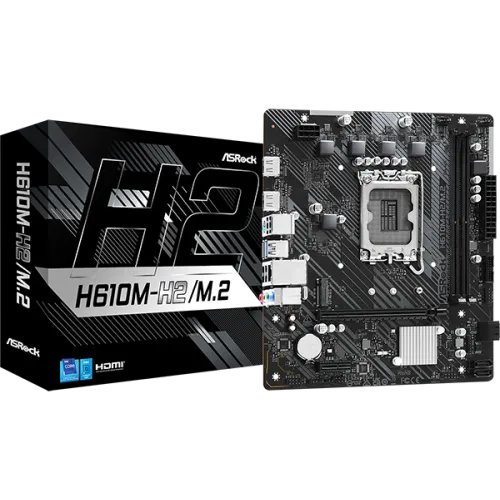

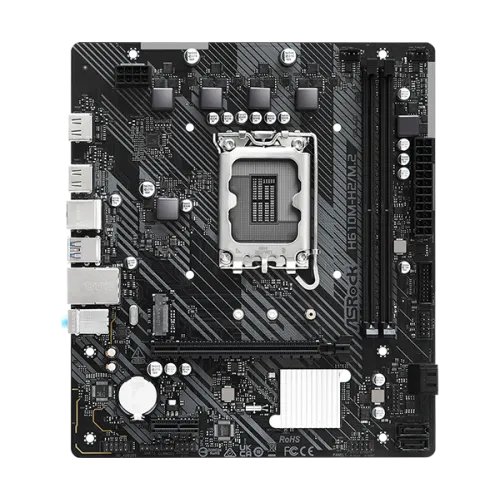

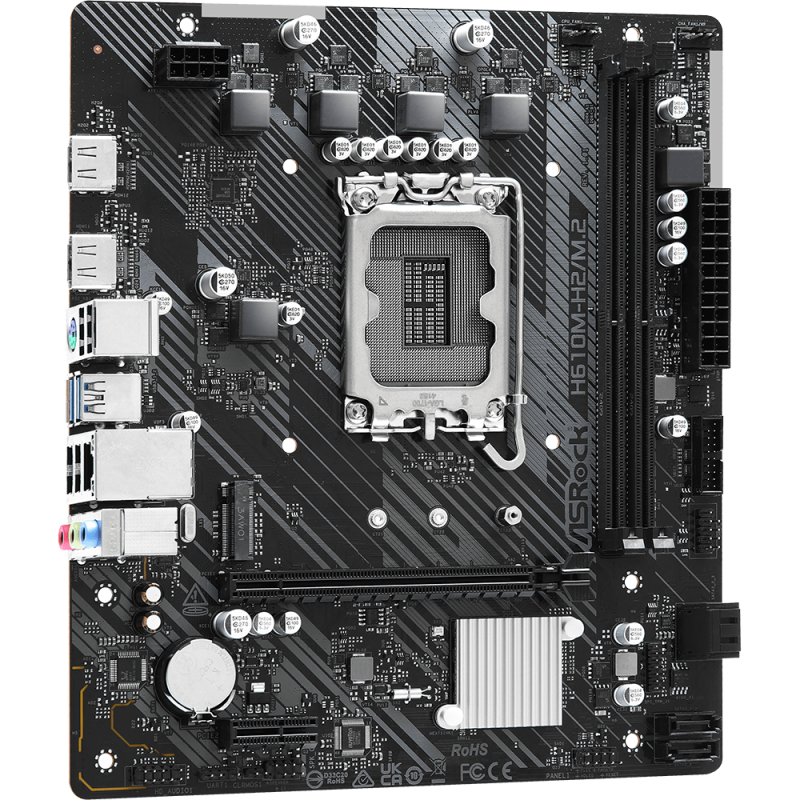

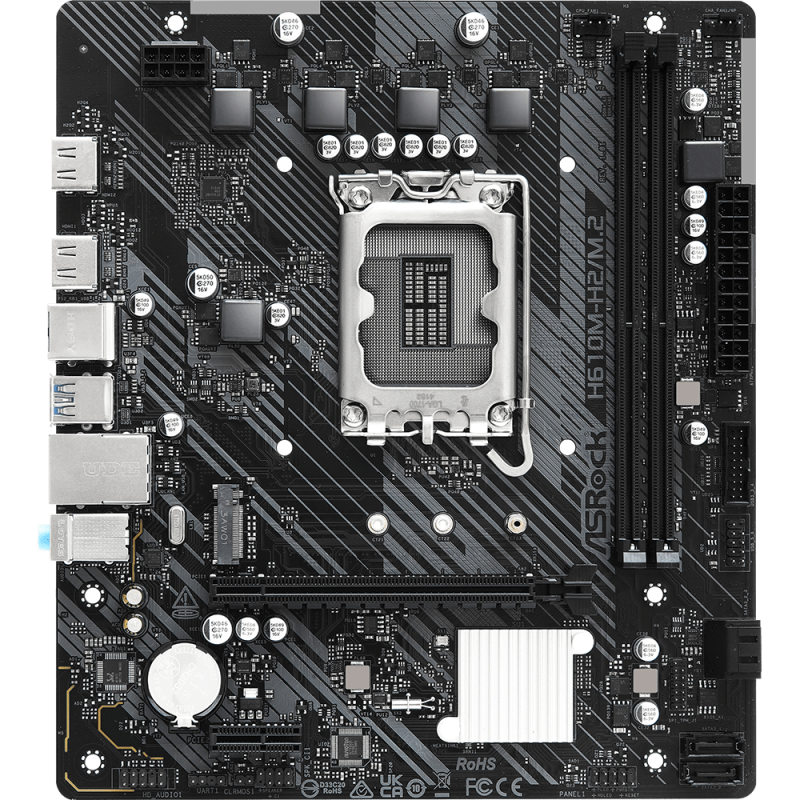

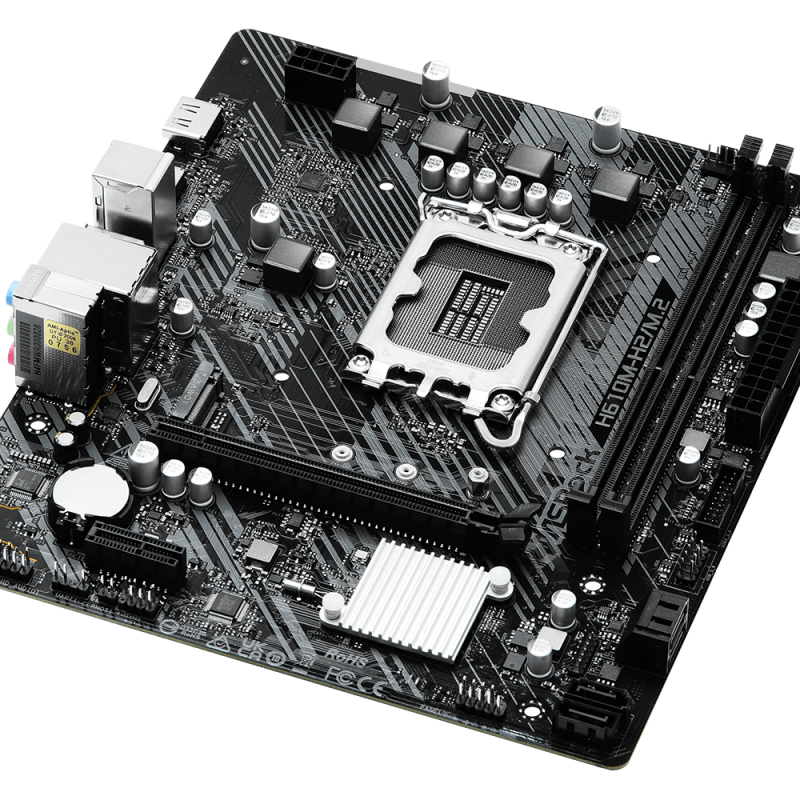

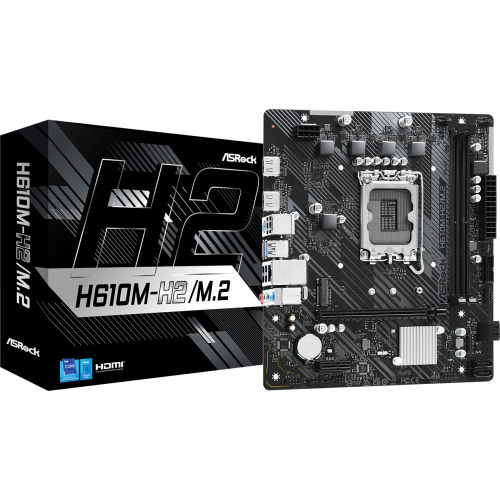

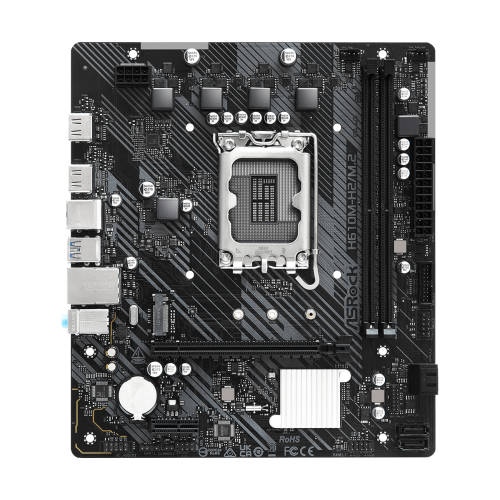

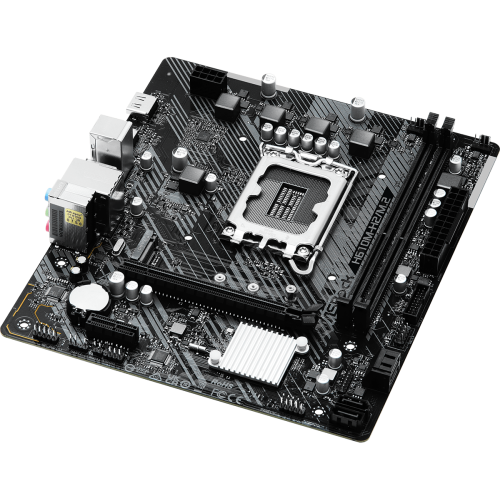

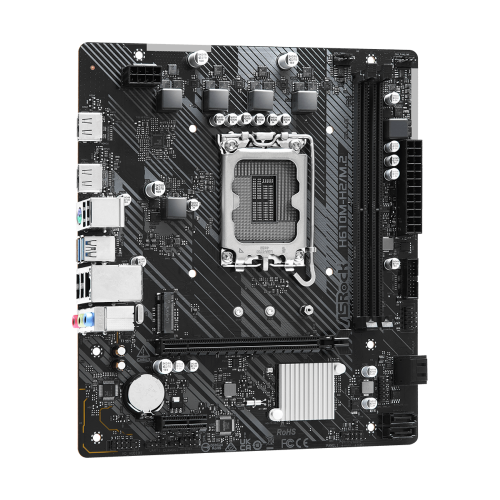

ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard

ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard
ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard
ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard
ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard
ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard
New
ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard
ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard
ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard
ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard
ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard
ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard
0 reviews - Write a review
  • Price: 10,000৳
  • Regular Price: 11,000৳
  • Stock : In Stock
  • Brand: Asrock
  • Model: H610M-H2/M.2

    • Key Features

    • Model: H610M-H2/M.2
    • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
    • Supports: Up to DDR4 3200MHz
    • Graphics Output: 2x HDMI
    • Features: Realtek ALC897 7.1 CH HD Audio Codec
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Specification

    Basic Information
    Supported CPU - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
    - Supports Intel® Hybrid Technology
    - Supports Intel® Turbo Boost Max 3.0 Technology
    Chipset Intel H610
    BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
    Form Factor - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
    Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    Expansion Slots
    PCI - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    - 1 x PCIe 3.0 x1 Slot (PCIE2)*
    M.2 Socket - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
    Memory
    Type Dual Channel DDR4 Memory Technology
    Slots 2 x DDR4 DIMM Slots
    Supported Memory - Supports DDR4 non-ECC, un-buffered memory up to 3200
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Supports Intel® Extreme Memory Profile (XMP) 2.0
    Maximum Memory 64GB
    Graphics
    Graphics - Intel® Xe Graphics Architecture (Gen 12)
    - 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz

    * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

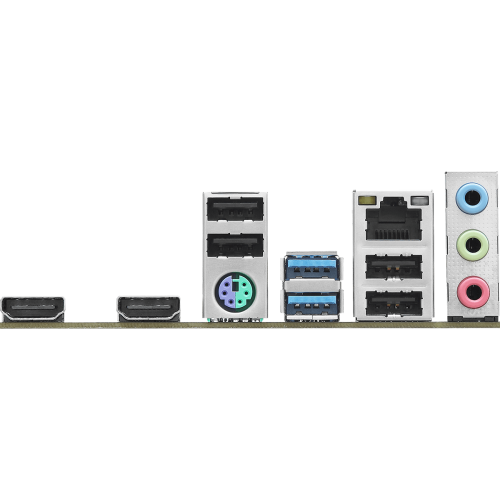

    Connector & Ports
    HDMI 2 x HDMI Port
    USB (s) - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
    - 6 x USB 2.0 (4 Rear, 2 Front)
    LAN Port (s) - Gigabit LAN 10/100/1000 Mb/s
    - Realtek 8111H
    Supported Storage - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors

    * Supports NVMe SSD as boot disks
    Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    Internal I/O Ports 1 x SPI TPM Header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x CPU Fan Connector (4-pin)*
    - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

    * CPU_FAN1 supports the fan power up to 1A (12W).
    ** CHA_FAN1/WP supports the fan power up to 2A (24W).
    CHA_FAN1/WP can auto-detect if 3-pin or 4-pin fan is in use.
    TPM (Trusted Platform Module ) - 1 x SPI TPM Header
    Others
    Bundled Software - ASRock Motherboard Utility (A-Tuning)
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash
    Warranty Information
    Manufacturing Warranty 3 years


    ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard

    The ASROCK H610M-H2/M.2 mATX Motherboard is a versatile and powerful foundation for your PC build, supporting 14th, 13th, and 12th Gen Intel Core processors with the LGA1700 socket. Designed for high performance and reliability, this ASROCK motherboard features a 3+1+1 phase power design and supports dual-channel DDR4 memory up to 3200MHz. The motherboard includes one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot, providing ample expansion options for graphics cards and other peripherals. For storage, it offers four SATA3 ports and one Ultra M.2 slot (PCIe Gen3 x4) for high-speed SSDs. Connectivity is robust with four USB 3.2 Gen1 ports (two rear, two front) and six USB 2.0 ports (four rear, two front), along with Realtek Gigabit LAN for fast and reliable internet access. The integrated Realtek ALC897 7.1 CH HD Audio Codec ensures high-quality sound for an immersive audio experience. Additionally, the ASROCK motherboard supports dual HDMI outputs, making it easy to set up multiple monitors. With features like ASRock's Auto Driver Installer, setting up your system is straightforward and hassle-free. The ASROCK H610M-H2/M.2 is an excellent choice for anyone looking to build a powerful and efficient PC with the latest Intel processors.ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard has 3 year warranty
