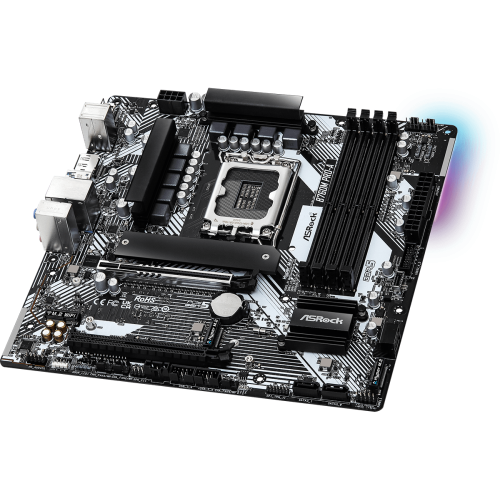

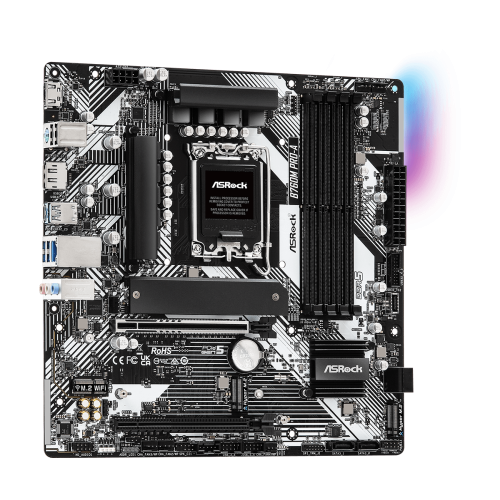

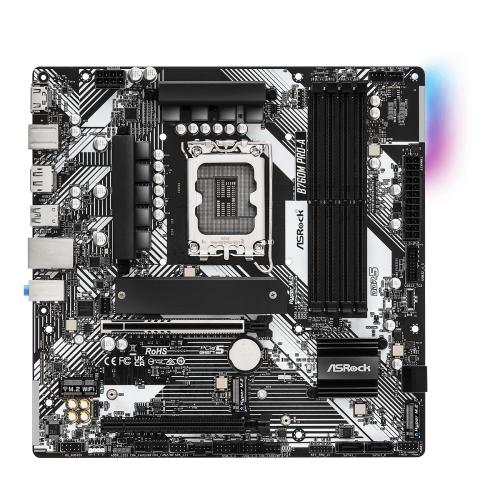

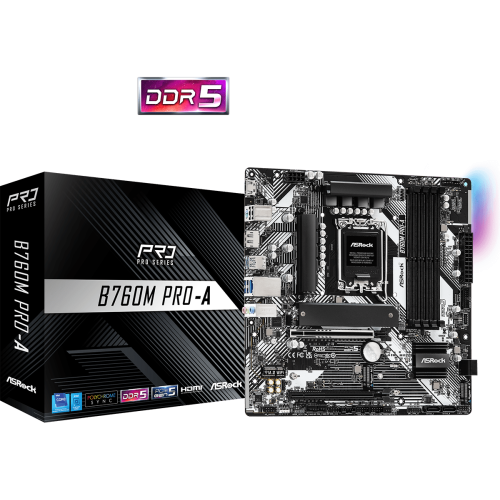

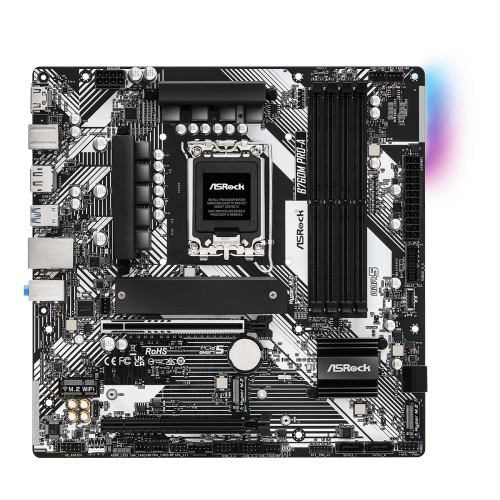

ASRock B760M Pro-A Intel DDR5 LGA1700 Micro ATX Motherboard

ASRock B760M Pro-A Intel DDR5 LGA1700 Micro ATX Motherboard
ASRock B760M Pro-A Intel DDR5 LGA1700 Micro ATX Motherboard
ASRock B760M Pro-A Intel DDR5 LGA1700 Micro ATX Motherboard
ASRock B760M Pro-A Intel DDR5 LGA1700 Micro ATX Motherboard
ASRock B760M Pro-A Intel DDR5 LGA1700 Micro ATX Motherboard
ASRock B760M Pro-A Intel DDR5 LGA1700 Micro ATX Motherboard
ASRock B760M Pro-A Intel DDR5 LGA1700 Micro ATX Motherboard
ASRock B760M Pro-A Intel DDR5 LGA1700 Micro ATX Motherboard
ASRock B760M Pro-A Intel DDR5 LGA1700 Micro ATX Motherboard
ASRock B760M Pro-A Intel DDR5 LGA1700 Micro ATX Motherboard
ASRock B760M Pro-A Intel DDR5 LGA1700 Micro ATX Motherboard
ASRock B760M Pro-A Intel DDR5 LGA1700 Micro ATX Motherboard
ASRock B760M Pro-A Intel DDR5 LGA1700 Micro ATX Motherboard
0 reviews - Write a review
  • Price: 16,800৳
  • Regular Price: 18,590৳
  • Stock : In Stock
  • Brand: Asrock
  • Model: ASRock B760M Pro-A

    • Key Features

    • Model: ASRock B760M Pro-A
    • 7+1+1 Power Phase, Dr.MOS for VCore+GT
    • 4 x DDR5 DIMMs
    • CPU Socket: LGA1700
    • Graphics Output Options: 1 HDMI, 1 DisplayPort
    • Realtek ALC897 7.1 CH HD Audio Codec
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Specification

    Supported CPU
    CPU Type - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
    - Supports Intel® Hybrid Technology
    - Supports Intel® Turbo Boost Max 3.0 Technology
    - Supports Intel® Thermal Velocity Boost (TVB)
    - Supports Intel® Adaptive Boost Technology (ABT)
    Chipsets
    Chipset - Intel® B760
    Memory
    Memory Type - Dual Channel DDR5 Memory Technology
    - 4 x DDR5 DIMM Slots
    - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
    - Max. capacity of system memory: 256GB
    - Supports Intel® Extreme Memory Profile (XMP) 3.0

    * 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
    Number of Memory Slots 4
    Graphics
    Graphics - Intel® Xe Graphics Architecture (Gen 12)
    - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
    - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

    * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    Audio
    Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    Storage
    Storage CPU:
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors
    RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Network
    LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    - Dragon RTL8125BG
    - Supports Dragon 2.5G LAN Software
    - Smart Auto Adjust Bandwidth Control
    - Visual User Friendly UI
    - Visual Network Usage Statistics
    - Optimized Default Setting for Game, Browser, and Streaming Modes
    - User Customized Priority Control
    BIOS
    BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
    Ports & Connectors
    USB Ports Chipset:
    - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
    - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
    - 6 x USB 2.0 (2 Rear, 4 Front)

    * All USB ports support ESD Protection

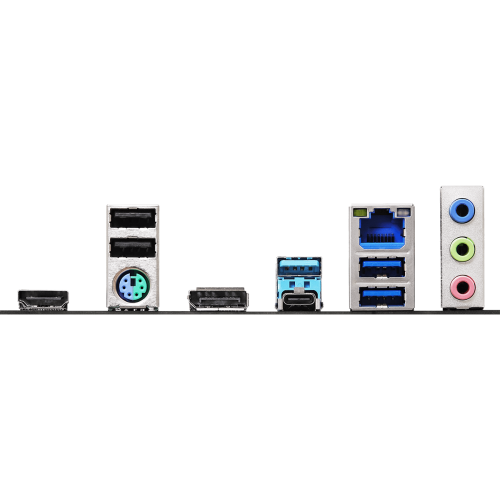

    Rear Panel I/O Ports - 2 x Antenna Mounting Points
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen1 Type-C Port
    - 3 x USB 3.2 Gen1 Type-A Ports
    - 2 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - HD Audio Jacks: Line in / Front Speaker / Microphone
    Form Factor
    Form Factor - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
    Others
    Bundled Software Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Dragon 2.5G LAN Software
    - ASRock Polychrome SYNC*
    Unique Feature Superb Productivity
    - PCIe Gen5 (Graphics)
    - Dual Channel DDR5
    Rock-Solid Durability
    - 7+1+1 Power Phase, Dr.MOS for VCore+GT
    Ultrafast Connectivity
    - 2.5G LAN
    EZ Update
    - ASRock Auto Driver Installer
    EZ Troubleshooter
    - ASRock Post Status Checker
    Warranty
    Warranty 3 Years Warranty


    ASRock B760M Pro-A Intel Motherboard

    Professionals and gamers alike can expect top-notch performance from the ASRock B760M Pro-A Intel Motherboard. This motherboard ensures compatibility with the newest CPUs by supporting 14th, 13th, and 12th Gen Intel® CoreTM processors, powered by the Intel® B760 chipset. With two DDR5 DIMM slots, dual-channel DDR5 memory technology offers a maximum system memory capacity of 128GB and supports speeds up to 7200+ MHz (OC), making it perfect for multitasking and demanding workloads. It also boasts cutting-edge capabilities.This motherboard is built for rock-solid durability with a 7+1+1 power phase design and ASRock’s Intel® 4-Layer Memory POOL technology, ensuring stable and reliable power delivery. The 2.5G LAN provides ultrafast connectivity, perfect for high-speed internet access and low-latency gaming. The inclusion of ASRock's Auto Driver Installer simplifies system updates, ensuring your system is always running the latest drivers.With four SATA3 ports and one Hyper M.2 and one Ultra M.2 socket that support PCIe Gen4x4 and Gen3x4 modes, the B760M Pro-A provides a range of storage options. With support for RAID 0, 1, 5, and 10, customers may choose from a variety of solutions for data management and protection, speed, and state-of-the-art capabilities.Up to 8K @ 60Hz resolution screens are supported for consumers to enjoy using HDMI 2.1 and DisplayPort 1.4 outputs. For those looking for a high-performance, long-lasting motherboard with cutting-edge features and seamless communication, the ASRock B760M Pro-A is the best option.The ASRock B760M Pro-A Intel Motherboard comes with a 3 year warranty.

    Write a review

    Please login or register to review

    What is the price of ASRock B760M Pro-A Intel DDR5 LGA1700 Micro ATX Motherboard in Bangladesh?

    The latest price of ASRock B760M Pro-A Intel DDR5 LGA1700 Micro ATX Motherboard in Bangladesh is 16,800৳ You can buy the ASRock B760M Pro-A Intel DDR5 LGA1700 Micro ATX Motherboard at best price from our website or visit any of our showrooms.
