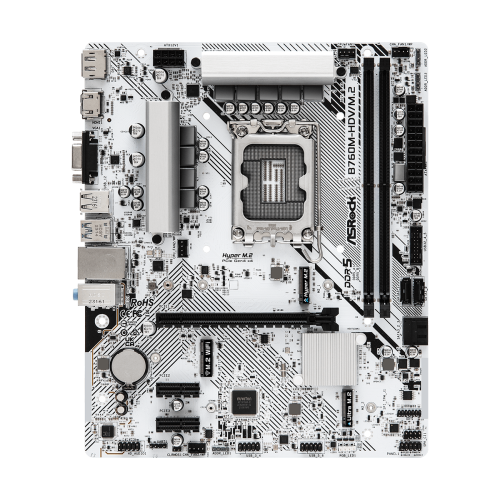

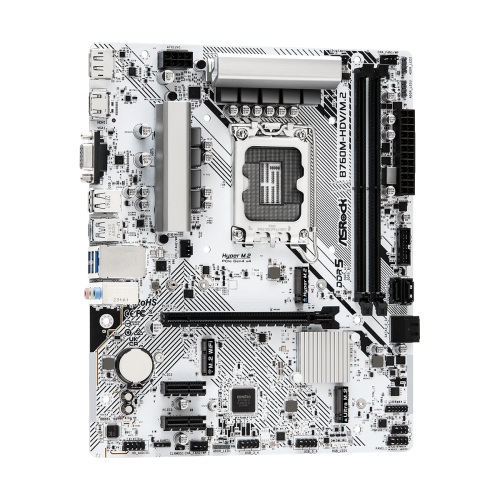

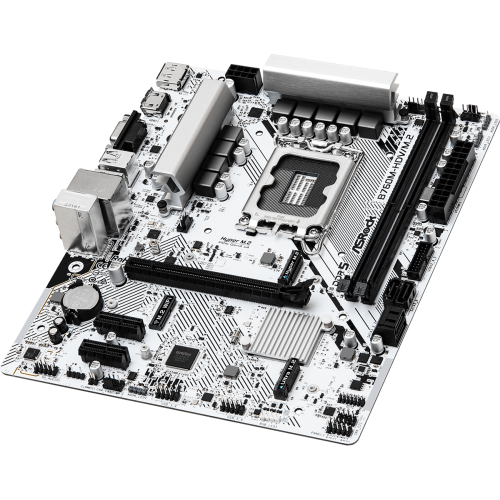

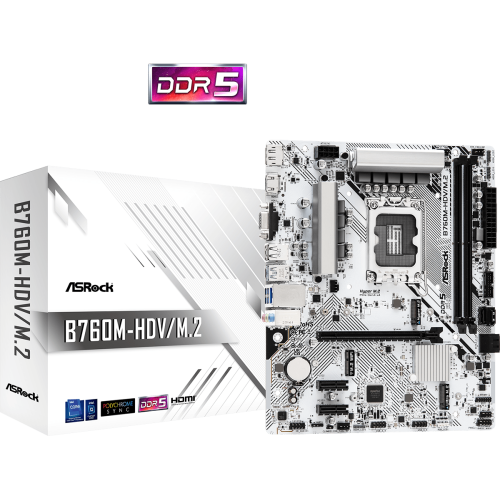

ASRock B760M-HDV/M.2 Intel 14th 13th & 12th Gen DDR5 LGA1700 Micro ATX Motherboard

Name: ASRock B760M-HDV/M.2 Intel 14th 13th & 12th Gen DDR5 LGA1700 Micro ATX Motherboard
Brand: Asrock
Price: 13800.00 BDT
Availability: InStock

Save: 1,500৳

ASRock B760M-HDV/M.2 Intel 14th 13th & 12th Gen DDR5 LGA1700 Micro ATX Motherboard

0 reviews - Write a review

Price: 13,800৳

Regular Price: 15,300৳

Stock : In Stock

Brand: Asrock

Model: ASRock B760M-HDV/M.2

Key Features

Model: ASRock B760M-HDV/M.2
Supported CPU: Intel 14th, 13th & 12th Gen Processors
Supported RAM: 2 x DDR5 DIMMs , Up to 7200+ (OC)
Graphics Output: 1 x HDMI, 1 x DisplayPort
Features: ASRock Auto Driver Installer , Dual Channel DDR5

13,800৳

Cash Discount Price

Online / Cash Payment

2,942৳/month

Regular Price: 15,300৳

EMI Starting from 2,942৳/month.
Click here to check EMI Policy

Qty

Add to Cart

Buy Now

Add to Wish List Add to Compare

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

Custom Tabs

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Description

Specification

Supported CPU
CPU Type	- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT)
Chipsets
Chipset	- Intel® B760
Memory
Memory Type	Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase -ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer
Number of Memory Slots	2
Graphics
Graphics	- Intel® Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Network
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
BIOS
BIOS	- 128Mb AMI UEFI Legal BIOS with GUI support
Ports & Connectors
USB Ports	- 1 x USB 3.2 Gen1 Type-C (Rear) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection

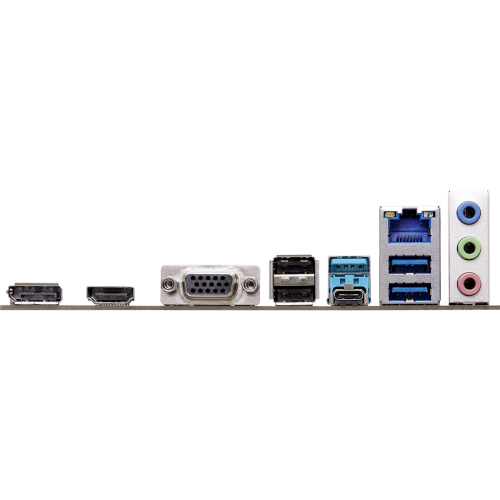

Rear Panel I/O Ports	- 2 x Antenna Mounting Points - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor
Form Factor	- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
Others
Bundled Software	- ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC*
Warranty
Warranty	3 Years Warranty

ASRock B760M-HDV/M.2 Intel Motherboard

Pros and enthusiasts alike will find the ASRock B760M-HDV/M.2 Intel Motherboard to be a wonderful choice due to its exceptional performance engineering. This motherboard is designed for maximum productivity and is compatible with Intel® CoreTM 12th, 13th, and 14th generation processors (LGA1700) thanks to its Dual Channel DDR5 Memory Technology. Requiring no less than 128GB of DDR5 non-ECC, unbuffered memory to reach speeds of up to 7200+(OC), it ensures that your system can effortlessly manage intensive tasks.The 7+1+1 Power Phase Design ensures unwavering longevity, while ASRock's cutting-edge Intel® 4-Layer Memory POOL Technology improves signal integrity to provide higher overclocking capability. 2.5G LAN ensures ultrafast connectivity and offers blazingly fast network speeds perfect for streaming, gaming, and data-intensive jobs.A PCIe 4.0 x16 slot for high-performance GPUs and several M.2 slots supporting PCIe Gen4x4 and Gen3x4 NVMe SSDs for quick storage solutions are just two of the motherboard's many extension possibilities. With a wide range of rear I/O options—including DisplayPort 1.4 and HDMI 2.1—users may experience breathtaking images with up to 8K quality. Furthermore, the ASRock Auto Driver Installer simplifies setup and guarantees quick system startup.The ASRock B760M-HDV/M.2 Intel Motherboard provides the ideal balance of robustness, speed, and state-of-the-art capabilities, whether you're building a high-performance gaming setup or a productivity powerhouse.The ASRock B760M-HDV/M.2 Intel Motherboard comes with a 3 year warranty.

Reviews

What is the price of ASRock B760M-HDV/M.2 Intel 14th 13th & 12th Gen DDR5 LGA1700 Micro ATX Motherboard in Bangladesh?

The latest price of ASRock B760M-HDV/M.2 Intel 14th 13th & 12th Gen DDR5 LGA1700 Micro ATX Motherboard in Bangladesh is 13,800৳ You can buy the ASRock B760M-HDV/M.2 Intel 14th 13th & 12th Gen DDR5 LGA1700 Micro ATX Motherboard at best price from our website or visit any of our showrooms.
