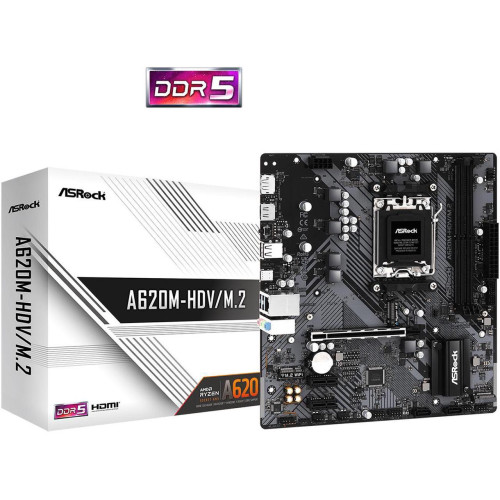

ASRock A620M-HDV/M.2 AMD Motherboard

ASRock A620M-HDV/M.2 AMD Motherboard
ASRock A620M-HDV/M.2 AMD Motherboard
ASRock A620M-HDV/M.2 AMD Motherboard
ASRock A620M-HDV/M.2 AMD Motherboard
ASRock A620M-HDV/M.2 AMD Motherboard
Pre-Order
ASRock A620M-HDV/M.2 AMD Motherboard
ASRock A620M-HDV/M.2 AMD Motherboard
ASRock A620M-HDV/M.2 AMD Motherboard
ASRock A620M-HDV/M.2 AMD Motherboard
ASRock A620M-HDV/M.2 AMD Motherboard
ASRock A620M-HDV/M.2 AMD Motherboard
0 reviews - Write a review
  • Price:
  • Regular Price: 0৳
  • Stock : Pre-Order
  • Brand: Asrock
  • Model: ASRock A620M-HDV/M.2

    • Key Features

    • Model: ASRock A620M-HDV/M.2
    • 6 Phase Power Design
    • 2 x DDR5 DIMM Slots
    • Graphics Output Options: D-Sub, HDMI
    • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
    Pre-Order
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Specification

    Brand & Model
    Brand ASRock
    Series AMD
    Model A620M-HDV
    Supported CPU
    CPU Type - Supports AMD AM5 Socket Ryzen™ 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors*
    - 6 Power Phase design
    Chipsets
    Chipset - AMD A620
    Memory
    Memory Type - Dual Channel DDR5 Memory Technology
    Number of Memory Slots - 2 x DDR5 DIMM Slots
    - 15μ Gold Contact in DIMM Slots
    Supported Memory - AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    - Max. capacity of system memory: 64GB**
    - Supports Extreme Memory Profile (XMP) memory modules
    - 15μ Gold Contact in DIMM Slots
    Graphics
    Graphics - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
    - DirectX 12, Pixel Shader 5.0
    - Shared memory default 2GB. Max Shared memory supports up to 16GB.
    - Dual graphics output: support D-Sub and HDMI ports by independent display controllers
    - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
    - Supports HDR (High Dynamic Range) with HDMI 2.1
    - Supports HDCP 2.3 with HDMI 2.1 Port
    - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
    - Supports Microsoft® PlayReady
    Audio
    Audio - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
    - Supports Surge Protection
    Expansion Slots
    Expansion Slots - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
    - 1 x PCI Express 3.0 x1 Slot
    Storage
    Storage CPU:
    - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
    Chipset:
    - 4 x SATA3 6.0 Gb/s Connectors
    RAID - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    Network
    LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    - Realtek RTL8111H
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
    BIOS
    BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
    - Supports "Plug and Play"
    - ACPI 5.1 compliance wake up events
    - Supports jumperfree
    - SMBIOS 2.3 support
    - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
    Ports & Connectors

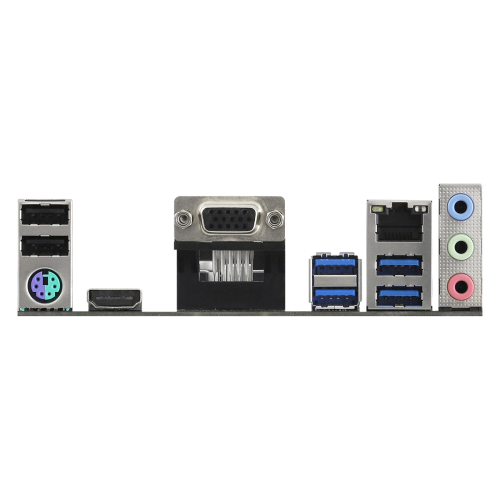

    Rear Panel I/O Ports - 1 x PS/2 Mouse/Keyboard Port
    - 1 x D-Sub Port
    - 1 x HDMI Port
    - 2 x USB 2.0 Ports (Supports ESD Protection)
    - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone
    Form Factor
    Form Factor - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
    - Solid Capacitor design
    Others
    Unique Feature ASRock Super Alloy
    - Premium 50A Power Choke
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
    Warranty
    Warranty 3 years


    ASRock A620M-HDV/M.2 AMD Motherboard

    ASRock A620M-HDV/M.2 AMD Motherboard built in AMD AM4 socket with A620 chipset. The ASRock A620M-HDV/M.2 AMD Motherboard interface that pushes data transfer speeds up to 32 GB/s. In addition, it also supports SATA3 6Gb/s M.2 modules. The ASRock A520M-HVS performance on traditional PC systems is restricted by the processor's limited access to graphics RAM. With AMD Smart Access RAM, the data channel is widened to take advantage of everything the GPU RAM has to offer, removing the performance bottleneck. The latest HDMI 4K 60Hz graphics output standard is supported. The animation on your screen becomes smoother and less hazy with the higher frame rate and wider bandwidth. complete with the two most popular connection kinds! Now that you have a D-Sub and HDMI combination, your possibilities for graphics output have increased. The ASRock A620M-HDV/M.2 AMD Motherboard has a 3-year warranty.
