ASRock A520M-HVS AMD AM4 Micro ATX Motherboard

ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
0 reviews - Write a review
  • Price: 8,300৳
  • Regular Price: 9,570৳
  • Stock : In Stock
  • Brand: Asrock
  • Model: A520M-HVS

    • Key Features

    • Model: A520M-HVS
    • Supported CPU: AM4 Socket Ryzen 3000, 4000 G & 5000 & 5000 G-Series
    • Supported RAM: 2 x DDR4, 4733+ (OC)
    • Graphics Output: D-Sub, HDMI
    • Features: 1 x Ultra M.2, Realtek Gigabit LAN
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    ASRock A520M-HVS AMD AM4 Micro ATX Motherboard


    ASRock A520M-HVS AMD AM4 Micro ATX Motherboard

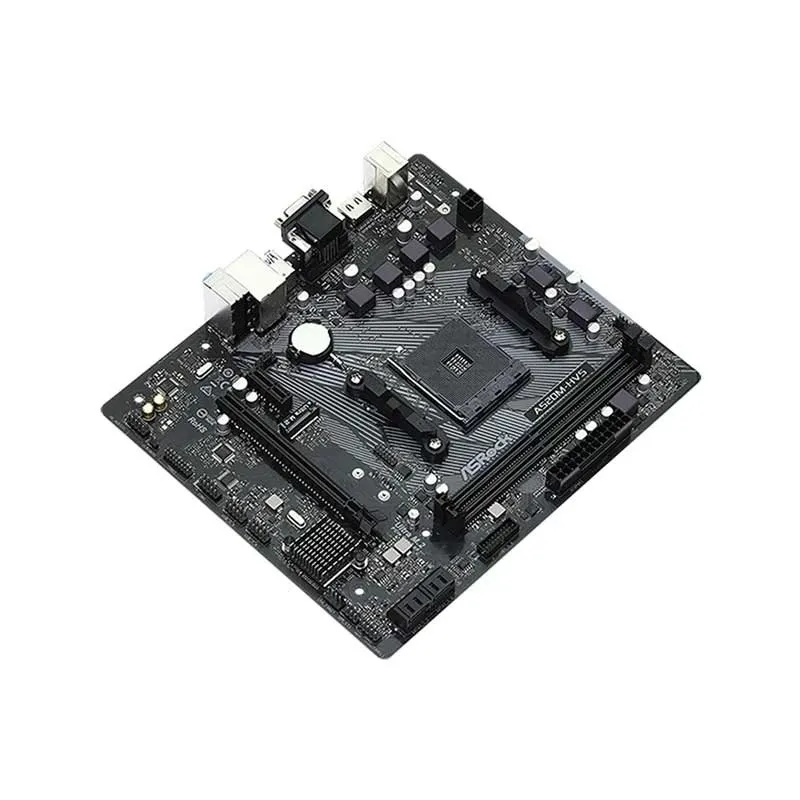

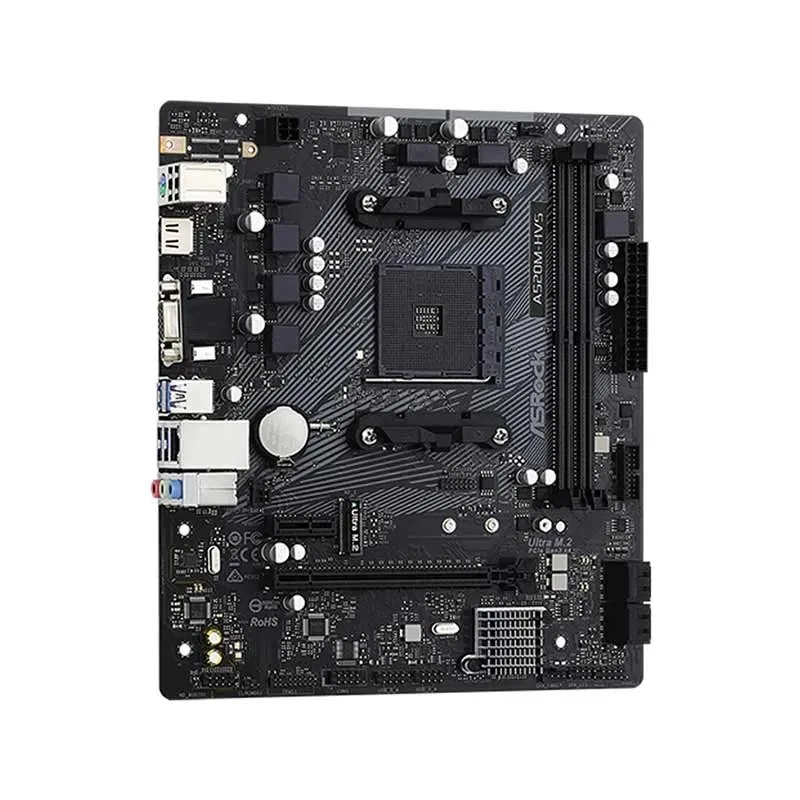

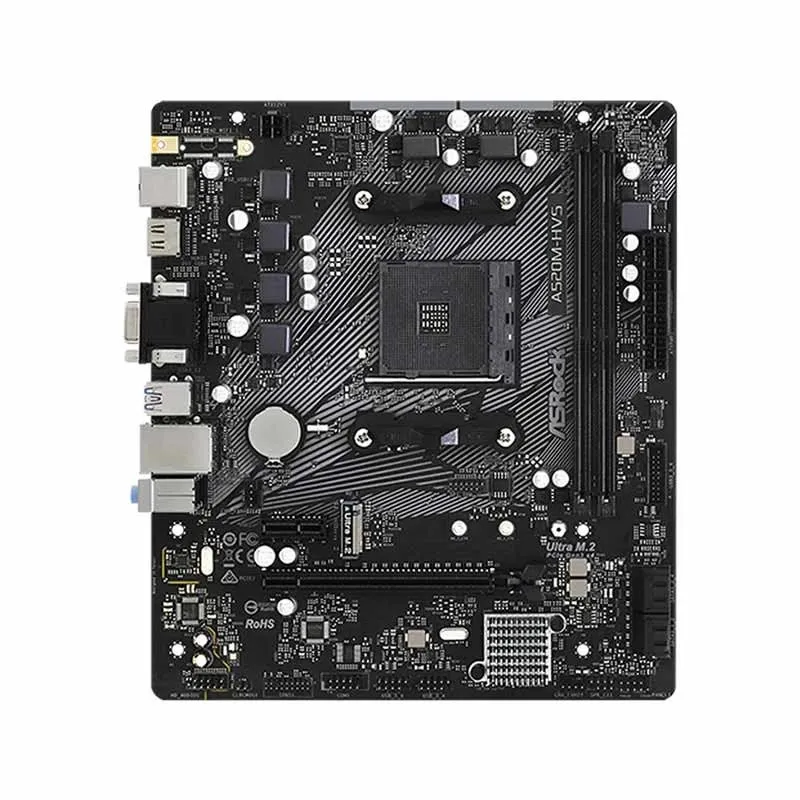

    The ASRock A520M-HVS AMD AM4 Micro ATX Motherboard is a versatile and feature-rich option for computing needs. It supports AMD AM4 Socket Ryzen processors, offering a 6 Phase Power Design for reliable performance. With support for DDR4 4733+ (OC) RAM, it ensures fast and efficient multitasking. The motherboard features multiple connectivity options, including PCIe 3.0 x16 and PCIe 3.0 x1 slots, D-Sub and HDMI graphics output options, and various USB ports. It also includes Realtek Gigabit LAN for reliable networking. The Ultra M.2 interface enables high-speed data transfer, and the motherboard supports AMD Smart Access Memory for enhanced GPU performance. With its premium power chokes, high-density glass fabric PCB, and full spike protection, the motherboard ensures stability and durability.

    Specification

    Basic Information
    Supported CPUSupports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors
    6 Power Phase design
    ChipsetAMD A520
    BIOS- 128Mb AMI UEFI Legal BIOS with GUI support
    - Supports "Plug and Play"
    - ACPI 5.1 compliance wake up events
    - Supports jumperfree
    - SMBIOS 2.3 support
    - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
    Form FactorMicro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
    Solid Capacitor design
    Audio7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
    Supports Surge Protection
    Expansion Slots
    PCI1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
    1 x PCI Express 3.0 x1 Slot
    Memory
    TypeDDR4
    Slots2 x DIMM
    Supported MemoryDual Channel DDR4 Memory Technology
    AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    Supports Extreme Memory Profile (XMP) memory modules
    15μ Gold Contact in DIMM Slots
    Maximum Memory64GB
    Graphics
    Graphics- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
    - DirectX 12, Pixel Shader 5.0
    - Shared memory default 2GB. Max Shared memory supports up to 16GB.**
    - Dual graphics output: support D-Sub and HDMI ports by independent display controllers
    - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
    - Supports HDR (High Dynamic Range) with HDMI 2.1
    - Supports HDCP 2.3 with HDMI 2.1 Port
    - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
    - Supports Microsoft PlayReady
    Max Shared Memory16GB

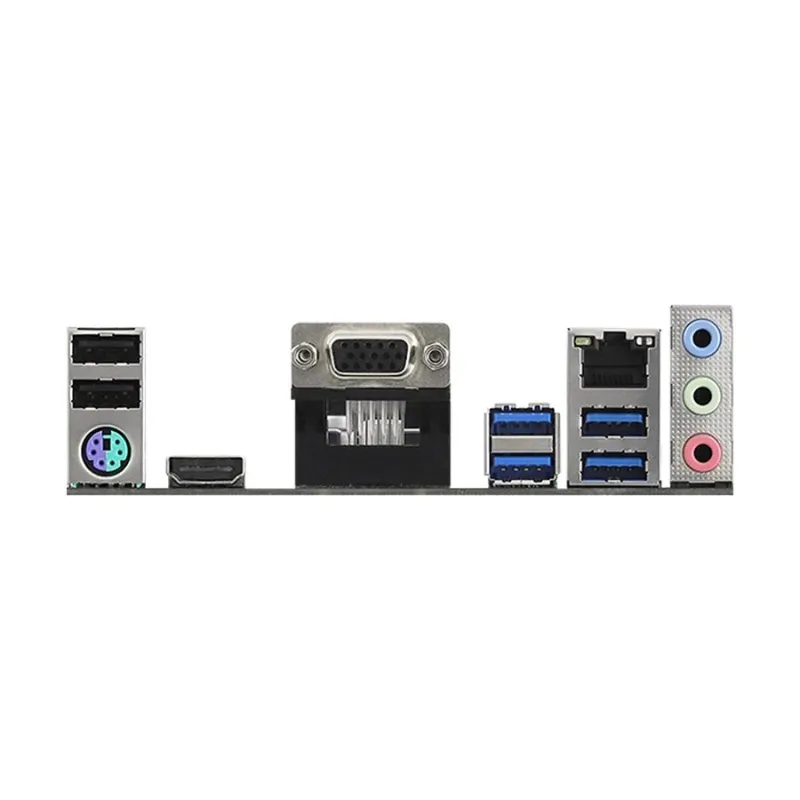

    Connector & Ports
    HDMI1 x HDMI
    D-Sub (s)1 x D-Sub
    USB (s)2 x USB 2.0 Ports (Supports ESD Protection)
    4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    LAN Port (s)PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    Realtek RTL8111H
    Supports Wake-On-LAN
    Supports Lightning/ESD Protection
    Supports Energy Efficient Ethernet 802.3az
    Supports PXE
    Supported StorageCPU:
    1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
    Chipset:
    4 x SATA3 6.0 Gb/s Connectors
    RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    AudioHD Audio Jacks: Line in / Front Speaker / Microphone
    Internal I/O Ports1 x COM Port Header
    1 x Chassis Intrusion and Speaker Header
    1 x CPU Fan Connector (4-pin)*
    2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
    1 x 24 pin ATX Power Connector
    1 x 4 pin 12V Power Connector
    1 x Front Panel Audio Connector
    2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
    TPM (Trusted Platform Module )1 x SPI TPM Header
    Others
    Special FeaturesASRock Super Alloy
    - Premium 50A Power Choke
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
    Warranty Information
    Manufacturing Warranty03 Years Warranty

    Write a review

    Please login or register to review

    What is the price of ASRock A520M-HVS AMD AM4 Micro ATX Motherboard in Bangladesh?

    The latest price of ASRock A520M-HVS AMD AM4 Micro ATX Motherboard in Bangladesh is 8,300৳ You can buy the ASRock A520M-HVS AMD AM4 Micro ATX Motherboard at best price from our website or visit any of our showrooms.
