AMD Ryzen 7 7800X3D Processor

Specification

Description

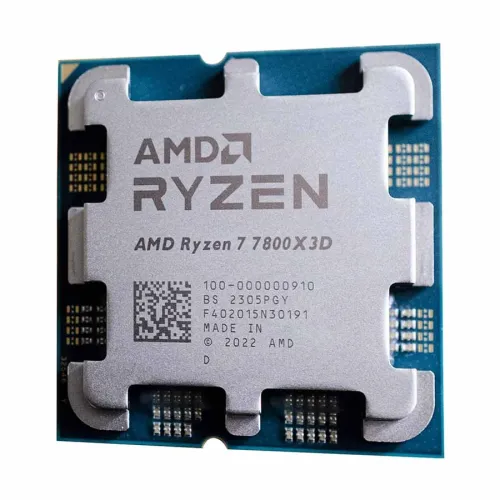

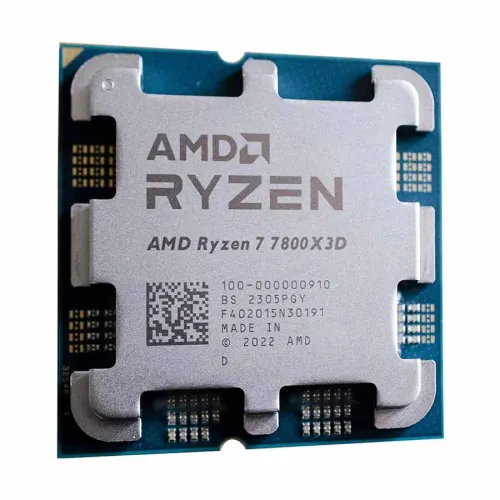

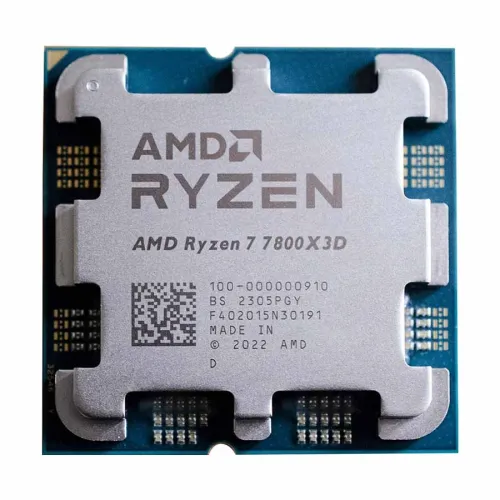

AMD Ryzen 7 7800X3D Processor

The AMD Ryzen 7 7800X3D Processor is a powerful CPU built on the latest "Zen 4" architecture. This processor has 8 cores and supports multithreading with 16 threads. AMD Ryzen 7 7800X3D has a base clock speed of 4.2GHz, which can be boosted up to 5.0GHz for even faster processing. It also features a large L3 cache of 96MB, providing quick access to frequently used data. This processor uses TSMC 5nm FinFET technology for the CPU cores and TSMC 6nm FinFET for the I/O die. It supports AMD EXPO memory overclocking technology, Precision Boost Overdrive, and Curve Optimizer Voltage Offsets for efficient performance tuning. The AMD Ryzen Master Support is available for advanced tweaking and optimization. The AMD Ryzen 7 7800X3D Processor supports the AM5 CPU socket and can be used with the X670E, X670, B650E, and B650 chipsets. It uses PCIe 5.0, providing faster data transfer rates, and has 28/24 native PCIe lanes. NVMe support is available for boot, RAID0, RAID1, and RAID10 configurations. The system memory type is DDR5 with two memory channels and a maximum memory capacity of 128GB. ECC support is available but requires motherboard support. The AMD Ryzen 7 7800X3D Processor has integrated AMD Radeon Graphics with two graphics core counts and a graphics frequency of 2200 MHz. It supports USB Type-C DisplayPort Alternate Mode, providing versatility for display output. The AMD Ryzen 7 7800X3D Processor is a high-end CPU that delivers impressive performance for demanding applications and multitasking. Its advanced features and technologies make it an ideal choice for gamers, content creators, and professionals who require high processing power.
