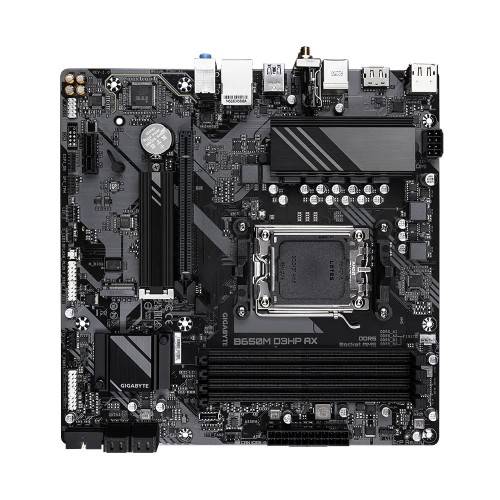

GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard

GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard
GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard
GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard
GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard
Save: 11,200৳
GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard
GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard
GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard
GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard
GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard
0 reviews - Write a review
  • Price: 18,800৳
  • Regular Price: 30,000৳
  • Stock : In Stock
  • Brand: Gigabyte
  • Model: B650M D3HP AX

    • Key Features

    • Model: B650M D3HP AX
    • Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
    • Supported RAM: 4x DDR5, up to 192GB, 7600(OC)
    • Graphics Output: 2x Display Port, 1 x HDMI
    • Features: Realtek 2.5GbE LAN & Realtek Wi-Fi 6E RTL8852CE

    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    • Specification

      Basic Information
      Supported CPUAMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors
      ChipsetAMD B650
      BIOS1 x 256 Mbit flash
      Use of licensed AMI UEFI BIOS
      PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
      Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
      AudioRealtek Audio CODEC
      High Definition Audio
      2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
      Expansion Slots
      PCI1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
      - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
      - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
      - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
      * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      Chipset:
      - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
      Memory
      TypeDDR5
      Slots4 DIMMs
      Supported Memory7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
      Dual channel memory architecture
      Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
      Maximum Memory192GB
      Graphics
      GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support
      - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
      * Support for DisplayPort 1.4 version.


      - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support for native HDMI 2.1 TMDS compatible ports.


      Support for up to triple-display at the same time
      (Graphics specifications may vary depending on CPU support.)
      Connector & Ports
      HDMI1x HDMI
      Display Port (s)2 x DisplayPorts
      USB (s)CPU:
      - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
      - 1 x USB 3.2 Gen 1 port on the back panel
      - 1 x USB 2.0/1.1 port on the back panel
      Chipset:
      - 2 x USB 3.2 Gen 1 ports on the back panel
      - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
      - 2 x USB 3.2 Gen 1 ports available through the internal USB header
      - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
      LAN Port (s)Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
      Wireless Communication moduleRealtek Wi-Fi 6E RTL8852CE
      - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
      - BLUETOOTH 5.3
      - Support for 11ax 160MHz wireless
      (Actual data rate may vary depending on environment and equipment.)
      Supported Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
      - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
      - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
      - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
      1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
      4 x SATA 6Gb/s connectors
      RAIDRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
      RAID 0, RAID 1, and RAID 10 support for SATA storage devices
      Audio3 x Audio jacks
      Internal I/O PortsInternal I/O Connectors
      1 x 24-pin ATX main power connector
      1 x 8-pin ATX 12V power connector
      1 x CPU fan header
      2 x system fan headers
      2 x addressable LED strip headers
      1 x RGB LED strip header
      2 x M.2 Socket 3 connectors
      4 x SATA 6Gb/s connectors
      1 x front panel header
      1 x front panel audio header
      1 x USB Type-C header, with USB 3.2 Gen 1 support
      1 x USB 3.2 Gen 1 header
      2 x USB 2.0/1.1 headers
      1 x Q-Flash Plus button
      1 x reset jumper
      1 x Clear CMOS jumper

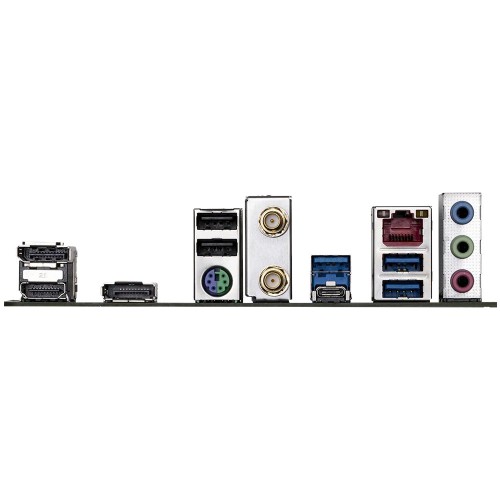

      Back Panel Connectors
      1 x PS/2 keyboard/mouse port
      1 x USB Type-C port, with USB 3.2 Gen 1 support
      3 x USB 3.2 Gen 1 ports
      2 x USB 2.0/1.1 ports
      1 x HDMI port
      2 x DisplayPorts
      1 x RJ-45 port
      3 x audio jacks
      TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
      Others
      Special FeaturesSupport for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      Support for Q-Flash
      Support for Q-Flash Plus
      Bundled SoftwareNorton Internet Security (OEM version)
      LAN bandwidth management software
      Warranty Information
      Manufacturing Warranty3 Years

      Description

      GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard

      The GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard is the latest platform that will elevate your computer experience. This motherboard's robust design ensures seamless performance for a wide range of applications, and it works with Ryzen 8000 and 7000 Series Processors for Socket AM5. The GIGABYTE B650M D3HP AX, equipped with the newest DDR5 memory technology, can overclock to 7600MHz and accommodate up to 192GB of RAM distributed across 4 DDR5 slots. This ensures smooth multitasking and lightning-fast response. This motherboard provides flexible graphics output choices for improved display setups, whether you're gaming, streaming, or working on multimedia projects. It is equipped with two Display Ports and one HDMI connector. Packed with features designed to maximize performance and connection is the GIGABYTE B650M D3HP AX. Fast and dependable network connections are ensured by its Realtek 2.5GbE LAN for high-speed wired networking and Realtek Wi-Fi 6E RTL8852CE for wireless connectivity. The 5+2+2 Phases Digital VRM Solution delivers unmatched performance and dependable power supply to your components—even when they are under severe loads. Memory speed and bandwidth are further improved by the Dual Channel DDR5 support, which includes 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support. The PCIe 4.0 x4 M.2 Connector raises the bar for storage capacity by providing SuperSpeed storage options for fast data transmission speeds. For even more convenience, the EZ-Latch PCIe x16 Slot with Quick Release Design makes hardware installation and removal simpler. Maintain connectivity and take advantage of swift network speeds with 2.5GbE LAN and Wi-Fi 6E 802.11ax. A large variety of devices and peripherals are compatible with the extended connectivity choices, which include two Display connectors and HDMI connectors. With its various temperature sensors and hybrid fan headers with FAN STOP technology, Smart Fan 6 offers intelligent cooling that maximizes thermal performance while reducing noise. Without requiring the installation of the CPU, RAM, or graphics card, the Q-Flash Plus function makes it easy to update the BIOS, simplifying the procedure for more comfort and assurance. Designed to satisfy the needs of modern computing, the GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard is a powerful solution that provides unmatched performance, connection, and simplicity for both enthusiasts and professionals.
